Eaton Tripp Lite SRWO8U22DP Eaton Tripp Lite SRW08U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack
SRWO8U22DP|TC-SRWO8U22D
Eaton Tripp Lite SRWO8U22DP Eaton Tripp Lite SRW08U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack
SRWO8U22DP|TC-SRWO8U22D
Key Features
- Expandable 8U/12U/22U open-frame rack
- Ideal for UPS systems and network switches
- Supports up to 150 lb (68 kgs)
Key Features
- Expandable 8U/12U/22U open-frame rack
- Ideal for UPS systems and network switches
- Supports up to 150 lb (68 kgs)
Key Features
- Expandable 8U/12U/22U open-frame rack
- Ideal for UPS systems and network switches
- Supports up to 150 lb (68 kgs)
Eaton Tripp Lite
Eaton Tripp Lite SRWO8U22DP Eaton Tripp Lite SRW08U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack
SRWO8U22DP | TC-SRWO8U22D
Please sign in to view pricing and availability and to add to cart.
Accessories
Keystone Jacks
ADI # 0E-C6KEYBL10
MODEL # 0E-C6KEYBL10
0E-C6KEYBL10|0E-C6KEYBL10
Sign In for Dealer Pricing
Cable Ducts
ADI # TC-SRCABDCT1
MODEL # SRCABLEDUCT1U
SRCABLEDUCT1U|TC-SRCABDCT1
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL1U
MODEL # SRCABLERING1U
SRCABLERING1U|TC-SRCABL1U
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL2U
MODEL # SRCABLERING2U
SRCABLERING2U|TC-SRCABL2U
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCBD1UHD
MODEL # SRCABLEDUCT1UHD
SRCABLEDUCT1UHD|TC-SRCBD1UHD
Sign In for Dealer Pricing

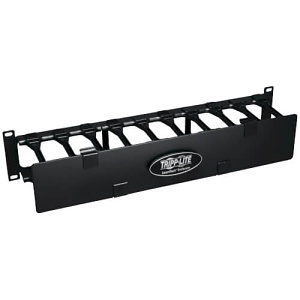

Cable Managers
ADI # TC-SRDUCT2HD
MODEL # SRCABLEDUCT2UHD
SRCABLEDUCT2UHD|TC-SRDUCT2HD
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRSHF2P1U
MODEL # SRSHELF2P1U
SRSHELF2P1U|TC-SRSHF2P1U
Sign In for Dealer Pricing
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

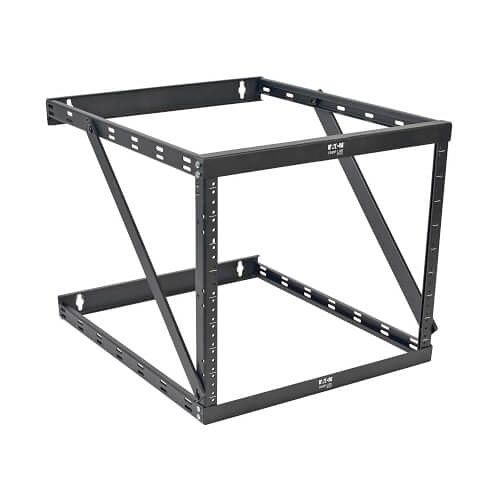

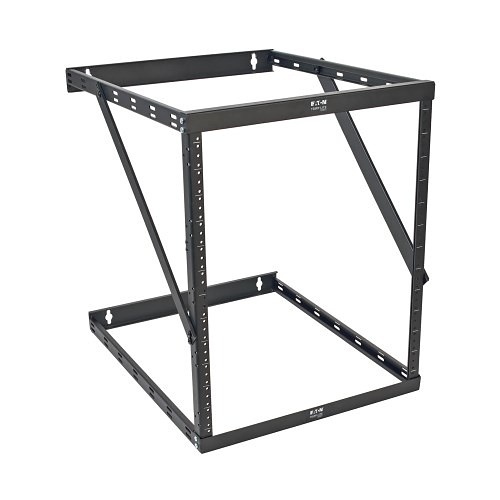

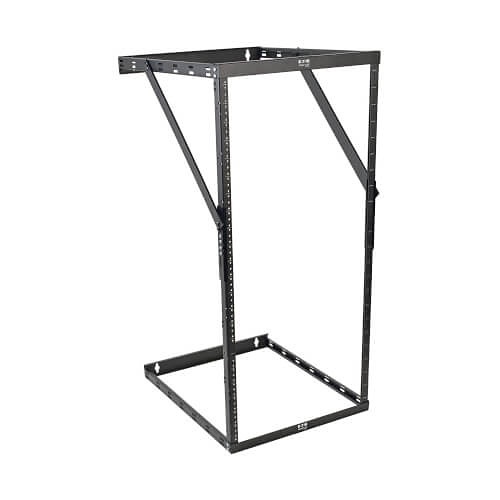

The SRWO8U22DP SmartRack 8U / 12U / 22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack is ideal for storing UPS systems, battery packs, power cords, network switches, patch panels and related cabling in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to components and cabling. It's compatible with EIA-standard 19" rack equipment that supports two-post mounting and a maximum mounting depth of 23.5". Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 lb (68 kg). The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling. The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
Main Features
- Expandable 8U/12U/22U open-frame rack
- Ideal for UPS systems and network switches
- Supports up to 150 lb (68 kgs)
- Compatible with 19 in. rack equipment
- Easy assembly with included hardware
- Durable black powder-coated steel
- Vertical mounting rails with 12-24 holes
- Wall-mountable with 16 in. spaced holes
General Information
Name: Eaton Tripp Lite SRWO8U22DP Eaton Tripp Lite SRW08U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332187420
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRWO8U22D Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRWO8U22DP Product Line SmartRack Product Model SRWO8U22DP Product Name SmartRack SRW08U22DP Rack Frame Product Type Rack Frame Weight 17.20lb
-
Application/Usage LAN Switch, Patch Panel, Server, UPS Color Black Depth 24" Form Factor Wall Mount Height 42.3" Material Steel Maximum Weight Capacity 150 lb Rack Depth 23.50" Rack Height 22U Rack Width 19" Width 20.1"
-
Limited Warranty 5-Year
-
Assembly Required Yes Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes
