Product Overview

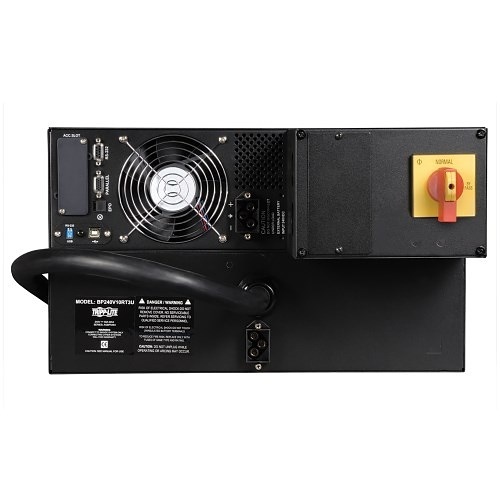

Tripp Lite SU10KRT3UHV 10,000VA / 10kVA / 9000 watt online, double-conversion UPS system offers complete power protection for critical network applications. This system delivers online, double-conversion UPS protection with zero transfer time, suitable for advanced networking applications. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included detachable PDU with manual bypass switch enables hot-swappable replacement of entire UPS power module with no interruption to connected equipment. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.
General Information
Name : Tripp Lite SU10KRT3UHV SmartOnline Double-Conversion UPS, 9kW, 200-240V, 10kVA, 6U , Tripp Lite by Eaton
Category : UPS
UPC Code : 037332115935
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-SU10KRTHV
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SU10KRT3UHV
Product Line : SmartOnline
Product Name : SmartOnline SU10KRT3UHV UPS
Product Type : Double Conversion Online UPS
Weight (Approximate) (g) : 148578.717
Technical Information
Backup/Run Time (Full Load) : 4.30 Minute
Backup/Run Time (Full Load) (Second) : 258
Backup/Run Time (Half Load) : 12.50 Minute
Backup/Run Time (Half Load) (Second) : 750
Hot Swappable : Yes
Output Voltage : 220 V AC, 230 V AC, 240 V AC
Output Voltage (V AC) : 220, 230, 240
Transfer Time : 0 ns
Transfer Time (Second) : 0
Battery Information
Battery Chemistry : Lead Acid
Battery Life : 6 Year
Battery Life (Second) : 189341556
Typical Battery Recharge Time : 4 Hour
Typical Battery Recharge Time (Second) : 14400
Controls/Indicators

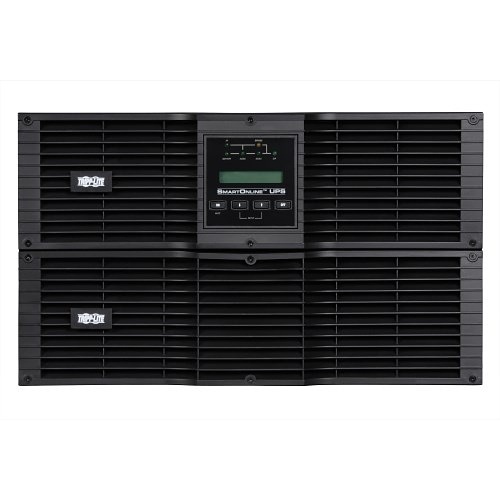

Status Indicators : 6 LED DISPLAY: line power, bypass, inverter, charger, output AC and battery operation. SELECTABLE LCD DISPLAY: input/output voltage, Hz, battery voltage and charge level and detailed warnings regarding all major UPS functions
Environmental Conditions
Maximum Operating Temperature : 104°F (40°C)
Maximum Operating Temperature (°F) : 104
Interfaces/Ports
Total Number of Expansion Slots : 1
Management
Alarm : Low Battery, On Battery, Overload, Remote Shutdown, UPS Fault
Network Management : SNMP Manageable
Physical Characteristics
Depth : 41"
Depth (mm) : 1041.4
Height : 31"
Height (mm) : 787.4
Rack Height : 6U
Weight (Approximate) : 327.56 lb
Width : 26"
Width (mm) : 660.4
Power Description
Waveform Type : Sine Wave
Product Information
Load Capacity : 10000 VA/9000 W
Load Capacity (W) : 10000.000
Warranty
Limited Warranty : 2 Year
Miscellaneous
Country of Origin : China
