Tripp Lite SU6000RT4UHV SmartOnline Double Conversion UPS Tower, 5.4kW, 208/240V, 6kVA, 4U
Brand: Tripp Lite by Eaton
ADI #:TC-SU6RT4UHV
Model #: SU6000RT4UHV
Name: Tripp Lite SU6000RT4UHV SmartOnline Double Conversion UPS Tower, 5.4kW, 208/240V, 6kVA, 4U
- Completely user hot-swappable-no service call or technician needed
- Included maintenance bypass switch enables live replacement of UPS with zero downtime
- Protects rackmount servers, telecom systems and other networking equipment in high-voltage environments with true on-line operation, pure sine wave output and zero transfer time
Product Overview
Featuring true on-line operation with pure sine wave output, zero transfer time to battery and complete UPS replacement capability with no downtime, the SU6000RT4UHV provides the highest level of protection available for mission-critical equipment from power outages, voltage fluctuations and transient surges. It converts incoming AC power to DC, and re-converts it back to filtered AC output with a pure sine wave, isolating connected components from all power problems in high-voltage environments. The SU6000RT4UHV has a 6kVA/5400W capacity and 4 AC outlets (2 L6-20R; 2 L6-30R).

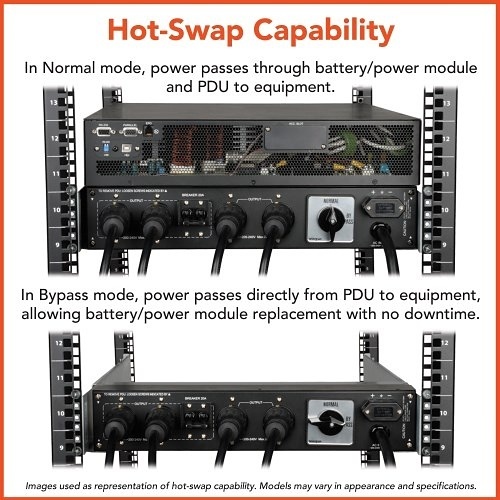

With its detachable PDU, the SU6000RT4UHV is easily hot-swappable by a user of any skill set-no need for lengthy and expensive service calls, and no downtime if a repair or battery replacement is needed. In bypass mode, the PDU passes power to equipment without the use of the power and battery modules, allowing them to be removed while keeping your application in operation.
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU6000RT4UHV's runtime can be expanded with optional external battery packs.
The SU6000RT4UHV features a highly efficient (96%) economy mode setting that can significantly reduce a facility's energy costs by minimizing heat output, reducing cooling requirements and consuming less electricity.
An LCD display with LED indicators enables IT personnel to monitor operating modes and conditions. The LCD/LED panel rotates for viewing in horizontal rack or vertical tower installations and includes an audible alarm that signals various conditions.
The SU6000RT4UHV features a USB port and a DB9 port that, when used with Tripp Lite's PowerAlert software, provides comprehensive network power monitoring and control. An optional network management card accessory, enables the UPS to operate as an IP managed device.
The unit requires only 4U of rack space in a standard rack enclosure and can be installed in a 2-post rack using the 2POSTRMKITHD accessory, or in a tower configuration with the 2-9USTAND accessory.
The SU6000RT4UHV comes with $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) for connected equipment.
With its detachable PDU, the SU6000RT4UHV is easily hot-swappable by a user of any skill set-no need for lengthy and expensive service calls, and no downtime if a repair or battery replacement is needed. In bypass mode, the PDU passes power to equipment without the use of the power and battery modules, allowing them to be removed while keeping your application in operation.
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU6000RT4UHV's runtime can be expanded with optional external battery packs.
The SU6000RT4UHV features a highly efficient (96%) economy mode setting that can significantly reduce a facility's energy costs by minimizing heat output, reducing cooling requirements and consuming less electricity.
An LCD display with LED indicators enables IT personnel to monitor operating modes and conditions. The LCD/LED panel rotates for viewing in horizontal rack or vertical tower installations and includes an audible alarm that signals various conditions.
The SU6000RT4UHV features a USB port and a DB9 port that, when used with Tripp Lite's PowerAlert software, provides comprehensive network power monitoring and control. An optional network management card accessory, enables the UPS to operate as an IP managed device.
The unit requires only 4U of rack space in a standard rack enclosure and can be installed in a 2-post rack using the 2POSTRMKITHD accessory, or in a tower configuration with the 2-9USTAND accessory.
The SU6000RT4UHV comes with $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) for connected equipment.
General Information
Name : Tripp Lite SU6000RT4UHV SmartOnline Double Conversion UPS Tower, 5.4kW, 208/240V, 6kVA, 4U , Tripp Lite by EatonCategory : UPS
UPC Code : 037332157096
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-SU6RT4UHV
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SU6000RT4UHV
Product Line : SmartOnline
Product Model : SU6000RT4UHV
Product Name : SmartOnline EZ SU6000RT4UHV 6000 VA Tower/Rack Mountable UPS
Product Series : EZ
Product Type : Double Conversion Online UPS
Weight (Approximate) (g) : 48987.976
Technical Information
Backup/Run Time (Full Load) : 2 Minute
Backup/Run Time (Full Load) (Second) : 120
Backup/Run Time (Half Load) : 8.50 Minute
Backup/Run Time (Half Load) (Second) : 510
EMI/RFI Noise Filter : Yes
Energy Saving : High efficiency economy mode operation; Support for daily startup and shutoff; Schedulable daily hours of economy mode operation
Hot Swappable : Yes
Output Voltage : 200 V AC, 208 V AC, 240 V AC
Output Voltage (V AC) : 200, 208, 240
Phase : Single Phase
Receptacle Detail : 2 x NEMA L6-20R, 2 x NEMA L6-30R
Receptacle Type : NEMA L6-20R, NEMA L6-30R
Sound Emission (dB(A)) : 60
Transfer Time : 0 ns
Transfer Time (Second) : 0
USB (HID Compliant) Port : Yes
Battery Information
DC System Voltage : 192 V DC
Replaceable Battery : Yes
Typical Battery Recharge Time : 6 Hour
Typical Battery Recharge Time (Second) : 21600
Category Specific Attributes
Surge Energy Rating (J) : 2595
Controls/Indicators
Status Indicators : <b>LEDs:</b><br /> <ul> <li>Line power</li> <li>Online mode</li> <li>Economy/bypass mode</li> <li>On-battery</li> <li>Charger</li> <li>AC output</li> </ul>
Environmental Conditions
Maximum Operating Elevation : 9842.52 ft
Maximum Operating Elevation (mm) : 3000000
Maximum Operating Temperature : 104°F (40°C)
Maximum Operating Temperature (°F) : 104
Interfaces/Ports
EPO Port : Yes
Serial Port : Yes
Management
Network Management : SNMP Manageable
Physical Characteristics
Depth : 20.7"
Depth (mm) : 525.78
Form Factor : Rack/Tower
Height : 6.9"
Height (mm) : 173.99
Rack Height : 4U
Weight (Approximate) : 108 lb
Width : 17.5"
Width (mm) : 444.5
Power Description
Input Frequency : 50 Hz
Input Frequency (Hz) : 50
Input Voltage : 230 V AC
Input Voltage (V AC) : 230
Output Frequency : 50 Hz
Plug/Connector Type : NEMA L6-30P
Surge Energy Rating : 2595 J
Waveform Type : Pure Sine Wave
Product Information
Load Capacity (W) : 6000.000
Software
Software Included : PowerAlert Software Suite
Warranty
Limited Warranty : 2 Year
Miscellaneous
Country of Origin : China
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul><li>SmartOnline EZ SU6000RT4UHV 6000 VA Tower/Rack Mountable UPS</li><li>PowerAlert Software Suite CD</li><li>USB Cable</li><li>Serial Cable</li><li>EPO Cable</li><li>Rail Kit</li></ul>
