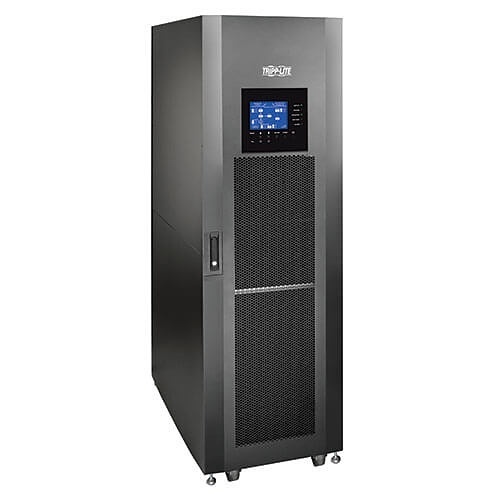

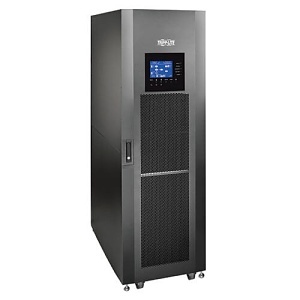

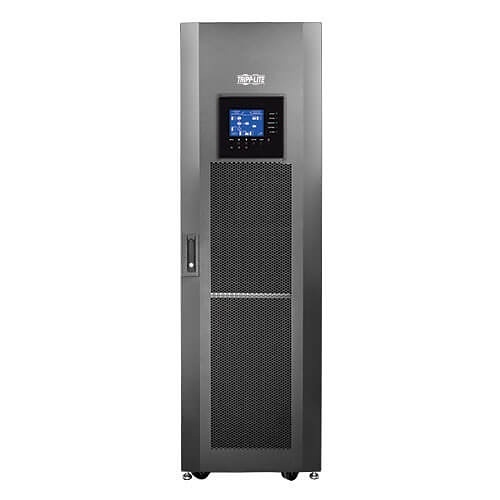

Eaton Tripp Lite SV20KM1P1B 20kVA/18kW 3-Phase UPS System, 1 Power Module, Scalable, 208/120V, Black
SV20KM1P3B
|TC-SV20KM1P1
Shop all Eaton Tripp Lite
Eaton Tripp Lite SV20KM1P1B 20kVA/18kW 3-Phase UPS System, 1 Power Module, Scalable, 208/120V, Black
SV20KM1P3B | TC-SV20KM1P1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

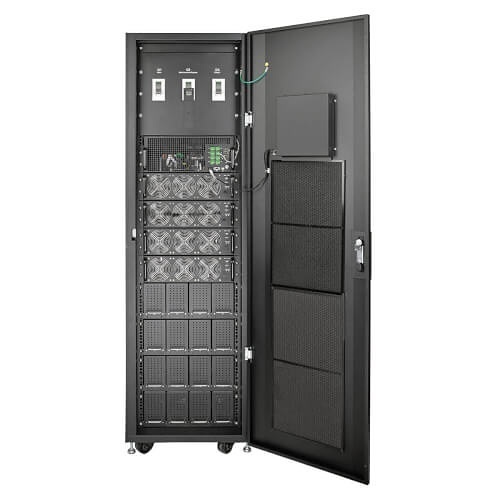

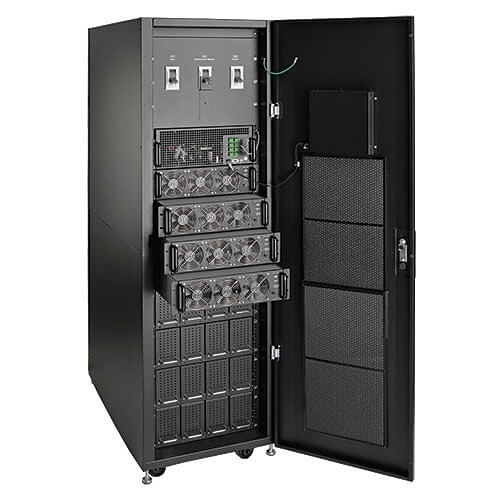

The SV20KM1P1B SmartOnline SV Series 20kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems. The SV20KM1P1B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), one 20kVA SV20PM power module and one SVBM battery module. Space is included for up to three additional user-installable SV20PM power modules and three SVBM internal battery modules. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 20kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.
Main Features
- 20kVA 18kW 3-Phase Medium-Chassis UPS System
- Supports 208/120V or 220/127V AC 50/60Hz
- Dual hardwire Input for 2 Power sources
- 1% Output voltage regulation
- Less than 1% Output total harmonic distortion
- Tested to UL 1778, CSA, and NOM standards
- High 0.9 Power factor
- Pre-installed WEBCARDLX for remote access
- Supports 10/100 Mbps Ethernet communication
- Modular design with hot-swappable modules
General Information
Name: Eaton Tripp Lite SV20KM1P1B 20kVA/18kW 3-Phase UPS System, 1 Power Module, Scalable, 208/120V, Black
Category: Batteries & Power Supplies, Power Management, UPS, ADI Pro Rewards
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-SV20KM1P1 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SV20KM1P1B Product Line SmartOnline Product Model SV20KM1P3B Product Name SmartOnline SV20KM1P1B 20kVA Tower UPS Product Series SmartOnline SV Product Type Dual Conversion Online UPS
Backup/Run Time (Full Load) 3.9-Minute Backup/Run Time (Half Load) 8-Minute Output Voltage 120V AC, 230V AC Phase Three Phase Receptacle Type Hardwired
Network Management SNMP Manageable, SSH, Telnet
Depth 43.3" Form Factor Tower Height 79.1" Weight 909.01lb Width 23.6"
Input Voltage 120V AC, 230V AC Plug/Connector Type Hardwired Waveform Type Pure Sine Wave
Limited Warranty 1-Year
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes
