Eaton Tripp Lite SV80KL 80kVA/72kW 3-Phase Online UPS System, Scalable, Hot-Swappable Modules, 208/120V, Black
SV80KL
|TC-SV80KL
Shop all Eaton Tripp Lite
Eaton Tripp Lite SV80KL 80kVA/72kW 3-Phase Online UPS System, Scalable, Hot-Swappable Modules, 208/120V, Black
SV80KL | TC-SV80KL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

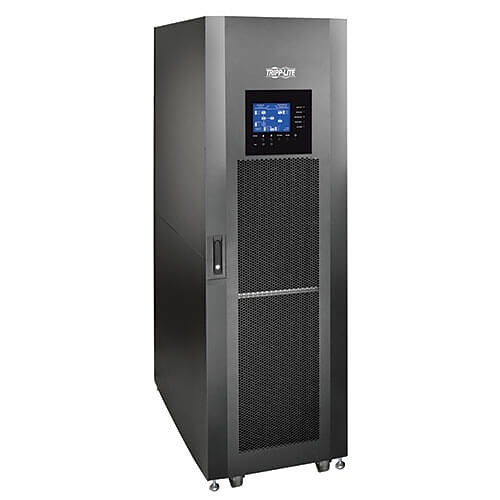

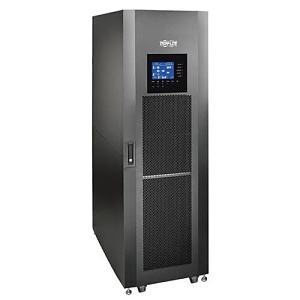

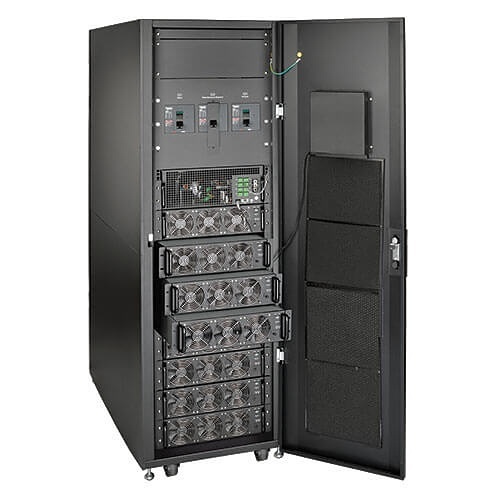

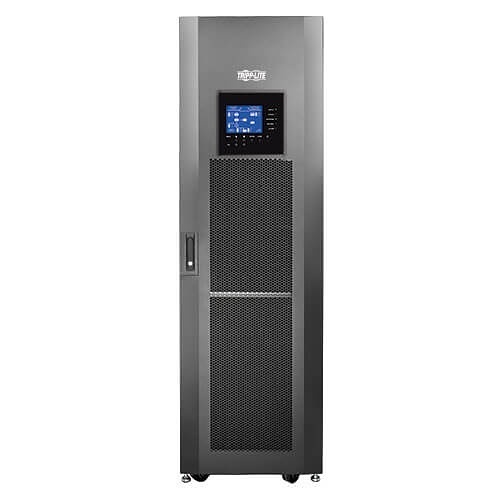

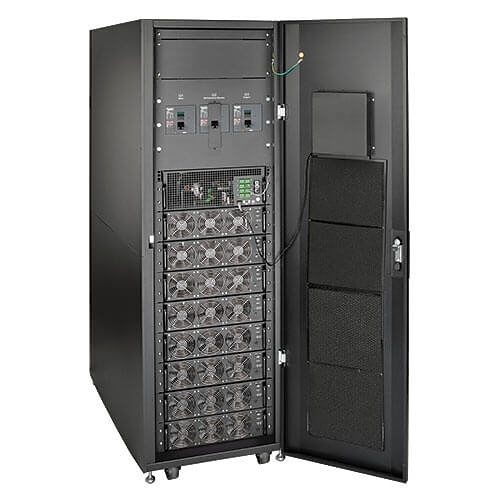

The SV80KL SmartOnline SV Series 80kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems. The SV80KL includes preinstalled input, bypass and output breakers, as well as a static transfer switch (STS) and four included 20kVA SV20PM power modules. Space is included for up to four additional user-installable SV20PM power modules to accommodate increased capacity up to 140kVA with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 80kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as BP240V370, are sold separately.
Main Features
- 80kVA 72kW 3-Phase UPS System
- Supports 208/120V or 220/127V AC 50/60 Hz
- Dual hardwire Input for 2 Power sources
- 1% Output voltage regulation
- Less than 1.5% Output total harmonic distortion
- Tested to UL 1778, CSA, and NOM standards
- High 0.9 Power factor
- External +/-120VDC battery cabinets required
- Pre-installed WEBCARDLX for remote access
- Supports 10/100 Mbps Ethernet communication
General Information
Name: Eaton Tripp Lite SV80KL 80kVA/72kW 3-Phase Online UPS System, Scalable, Hot-Swappable Modules, 208/120V, Black
Category: Batteries & Power Supplies, Power Management, UPS, ADI Pro Rewards
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-SV80KL Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SV80KL Product Line SmartOnline Product Model SV80KL Product Name SmartOnline SV80KL 80kVA Tower UPS Product Series SmartOnline SV Product Type Dual Conversion Online UPS
Output Voltage 120V AC, 230V AC Phase Three Phase Receptacle Type Hardwired
Network Management SNMP Manageable, SSH, Telnet
Depth 43.3" Form Factor Tower Height 79.1" Weight 906.10lb Width 23.6"
Input Voltage 120V AC, 230V AC Plug/Connector Type Hardwired Waveform Type Pure Sine Wave
Limited Warranty 1-Year
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SV80KL SmartOnline SV Series 80kVA 3-Phase On-Line Double-Conversion UPS System
- Pre-installed WEBCARDLX network interface
- (4) SV20PM 20kVA power modules (shipped separately)
- Owner’s manual
