Eaton Tripp Lite SV80KM4P4B 80kVA/72kW 3-Phase UPS System, Medium Frame, 4 Battery Modules, 208/120V, Black
SV80KM4P4B
|TC-SV80KM4P4
Shop All Eaton Tripp Lite
Eaton Tripp Lite SV80KM4P4B 80kVA/72kW 3-Phase UPS System, Medium Frame, 4 Battery Modules, 208/120V, Black
SV80KM4P4B | TC-SV80KM4P4
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

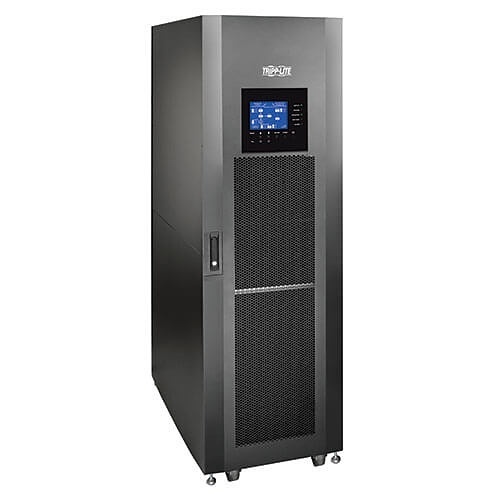

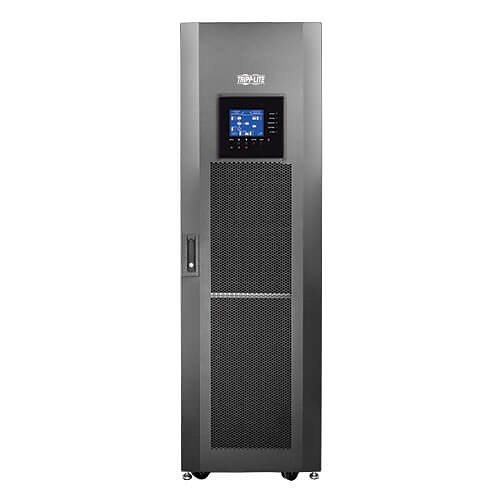

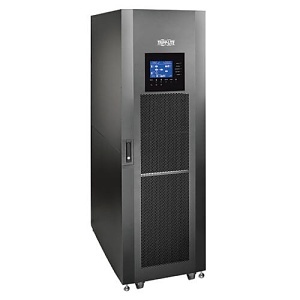

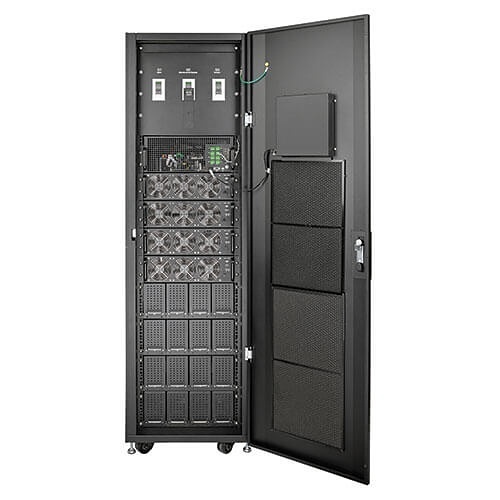

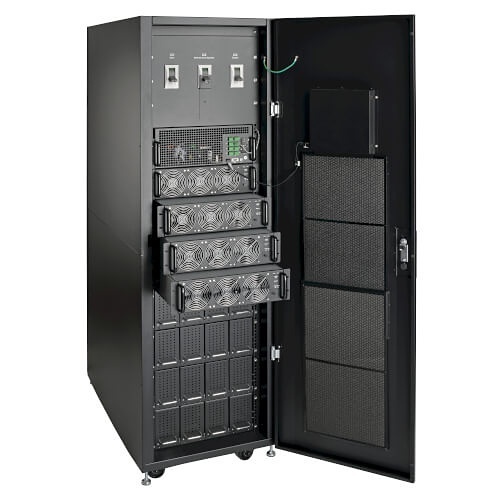

The SV80KM4P4B SmartOnline SV Series 80kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems. The SV80KM4P4B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), four 20kVA SV20PM power modules and four SVBM battery modules. It comes fully configured for 80kVA total capacity or 60kVA with enhanced N+1 protection. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 80kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.
Specifications
ADI Part Number TC-SV80KM4P4 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SV80KM4P4B Product Line SmartOnline Product Model SV80KM4P4B Product Name SmartOnline SV80KM4P4B 80kVA Tower UPS Product Series SmartOnline SV Product Type Dual Conversion Online UPS
Backup/Run Time (Full Load) 4-Minute Backup/Run Time (Half Load) 8.5-Minute Output Voltage 120V AC, 230V AC Phase Three Phase Receptacle Type Hardwired
Network Management SNMP Manageable, SSH, Telnet
Depth 43.3" Form Factor Tower Height 79.1" Weight 1826.99lb Width 23.6"
Input Voltage 120V AC, 230V AC Plug/Connector Type Hardwired Waveform Type Pure Sine Wave
Limited Warranty 1-Year
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes
