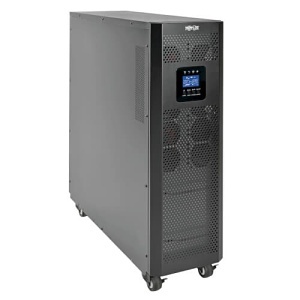

Eaton Tripp Lite SVT20KX SmartOnline SVTX Series 3‑Phase 20 kVA/18 kW On‑Line Double‑Conversion UPS Tower Extended Run
SVT20KX
|TC-SVT20KX
Shop All Eaton Tripp Lite
Eaton Tripp Lite SVT20KX SmartOnline SVTX Series 3‑Phase 20 kVA/18 kW On‑Line Double‑Conversion UPS Tower Extended Run
SVT20KX | TC-SVT20KX
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The SVT20KX SmartOnline SVTX Series 3-Phase 380/400/415V 20kVA 18kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It's recommended for critical IT or corporate infrastructure, telecom, LAN / WAN, security and emergency, financial and light industrial applications. The SVT20KX's Voltage and Frequency Independent (VFI) design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance. IGBT Inverter technology produces output power with less than 2% total harmonic distortion (THD) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands. Managing the SVT20KX is simplified through the interactive front-panel LCD interface, which displays critical operating conditions and diagnostic data, such as load levels, available runtime, alarm status, battery charge, and voltage and frequency values. Four LEDs indicate bypass, line, battery and fault modes. A built-in card slot supports WEBCARDLX or RELAYCARDSV for network interface and remote monitoring and control. The SVT20KX's reduced size and small footprint save valuable space.
Specifications
ADI Part Number TC-SVT20KX Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SVT20KX Product Line SmartOnline Product Model SVT20KX Product Name SmartOnline SVT20KX 20kVA Tower UPS Product Series SVTX
Depth 32" Height 33.9" Weight 392lb Width 9.8"
Limited Warranty 1-Year
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SVT20KX SmartOnline SVTX Series 3-Phase 380/400/415V 20kVA 18kW On-Line Double-Conversion UPS
- (2) RS-232 cables
- 6-pin current sharing cable
- Owner’s manual
