Product Overview

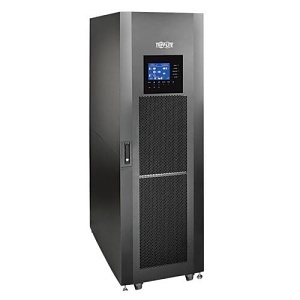

The SVX150KL 150kVA / 150kW SmartOnline large-chassis UPS includes installed Input, Bypass and Output breakers, a Static Transfer Switch (STS) and five included 30kVA SVX30PM power modules. The system includes space for up to three additional user installable SVX30PM power modules to accommodate increased capacity up to 210kW with N+1 fault-tolerance. Featuring modular, scalable design with high-efficiency voltage and frequency independent / VFI operation, SVX Series SmartOnline UPS systems are ideal for the protection of a wide variety of critical IT systems. Scalable, modular configuration enables UPS capacity upgrades and hot-swap power supply maintenance without costly downtime. Over 95% efficient in standard online-mode and over 99% efficient in optional economy-mode enables reduced operating and cooling costs. Unity power factor configuration provides equal kVA and kW output ratings for up to 25% more wattage capacity than common 0.8-0.9 power factor competing designs. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1.5% output total harmonic distortion. Advanced IGBT inverter with Digital Signal Processor (DSP) technology provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing. Dual input hardwire design enables operation from one or two input power sources for enhanced system availability. N+1 fault tolerance is supported anytime there is an "extra" SVX30PM 30kW power module installed beyond the minimum required quantity. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. UPS batteries are not included, external ±240VDC battery cabinets sold separate.
Main Features
- 150kVA / 150kW SmartOnline UPS with modular, scalable design
- Supports 220/380, 230/400, or 240/415V AC, 3-Phase Wye 4-Wire
- CE tested for worldwide applications
- Scalable up to 210kW with N+1 reliability
- Pre-installed WEBCARDLX for enhanced remote management
- Hot-swappable Power modules for zero downtime maintenance
- Wide Input voltage range for continuous operation
- Over 95% efficient in online, double-conversion mode
- Less than 3% Input Total Harmonic Distortion (THDi)
- Dual hardwire Input for one or two Power sources
General Information
Name: Eaton Tripp Lite SVX150KL SmartOnline SVX Series 150 kVA/150 kW Modular Scalable 3‑Phase Tower UPS, Includes Five SVX30PM Modules
Category: Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number TC-SVX150KL Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SVX150KL Product Line SmartOnline Product Model SVX150KL Product Name SmartOnline SVX SVX150KL 150KVA Tower UPS Product Series SVX
Depth 43.3" Height 79.1" Weight 983lb Width 23.6"
Limited Warranty 2-Year
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SVX150KL UPS System
- Instruction manual
- Warranty information
