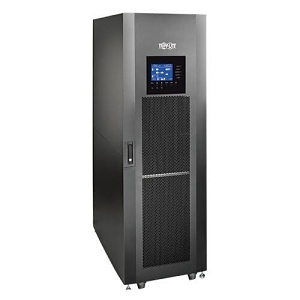

Eaton Tripp Lite SVX30KM1P4B 30kVA/27kW 3-Phase UPS System, 4 Power Modules, Medium Frame, 208/120V, Black
SVX30KM1P4B
|TC-SVX30KM1
Shop All Eaton Tripp Lite
Eaton Tripp Lite SVX30KM1P4B 30kVA/27kW 3-Phase UPS System, 4 Power Modules, Medium Frame, 208/120V, Black
SVX30KM1P4B | TC-SVX30KM1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The SVX30KM1P4B 30kVA/30kW SmartOnline Medium-Frame UPS includes installed input, bypass and output breakers, a static transfer switch (STS) and one included 30kVA SVX30PM power module. This system supports the addition of up to three additional user-installable SVX30PM power modules to accommodate increased capacity up to 90kW with N+1 fault tolerance. Four internal battery modules are included with space for up to one additional SVXBM internal battery module or any number of compatible ±240VDC external battery packs (sold separately). Featuring a modular, scalable design with high-efficiency voltage and frequency independent / VFI operation, SVX Series SmartOnline UPS systems are ideal for the protection of a wide variety of critical IT systems. Scalable, modular configuration enables UPS capacity upgrades and hot-swap power supply maintenance without costly downtime. Over 95% efficient in standard online mode and over 99% efficient in optional economy mode enables reduced operating and cooling costs. Unity power factor configuration provides equal kVA and kW output ratings for up to 25% more wattage capacity than common 0.8-0.9 power factor competing designs. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1.5% output total harmonic distortion. Advanced IGBT inverter with Digital Signal Processor (DSP) technology provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing. Dual-input hardwire design enables operation from one or two input power sources for enhanced system availability. N+1 fault tolerance is configurable anytime there is an "extra" SVX30PM 30kW power module installed beyond the minimum required quantity. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure.
Specifications
ADI Part Number TC-SVX30KM1 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SVX30KM1P4B Product Line SmartOnline Product Model SVX30KM1P4B Product Name SmartOnline SVX SVX30KM1P4B 30kVA Tower UPS Product Series SmartOnline SVX Product Type Dual Conversion Online UPS
Application/Usage IT Infrastructure Backup/Run Time (Full Load) 13-Minute Backup/Run Time (Half Load) 29-Minute Output Voltage 220V AC, 230V AC, 240V AC, 380V AC, 400V AC, 415V AC Phase Three Phase Receptacle Type Hardwired
Network Management SNMP Manageable
Depth 43.3" Form Factor Tower Height 79.1" Weight 1597.01lb Width 23.6"
Input Voltage 230V AC, 380V AC, 400V AC, 415V AC Plug/Connector Type Hardwired Waveform Type Pure Sine Wave
Limited Warranty 2-Year
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SVX30KM1P4B Medium-Frame Modular UPS System
- (1) SVX30PM 30kVA power module
- (4) SVXBM battery modules
- Pre-installed WEBCARDLX network interface
- Owner’s manual
