Eaton Tripp Lite U330F-15M-G1 USB 3.2 Gen 1 CL3-Rated Fiber Active Optical Cable, Extension/Repeater, 15m
U330F-15M-G1
|TC-U330F15MG

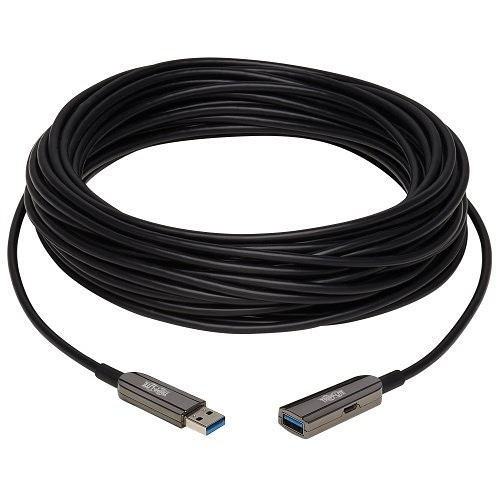

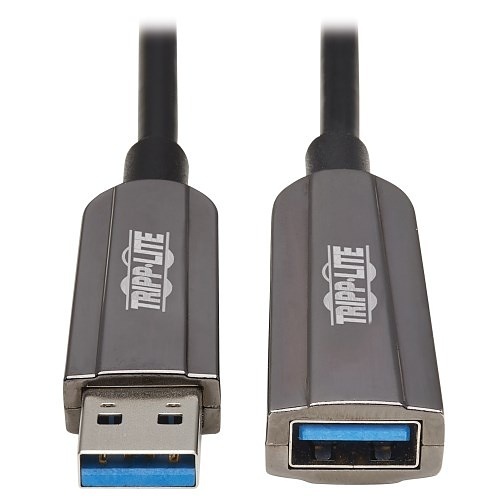

Eaton Tripp Lite U330F-15M-G1 USB 3.2 Gen 1 CL3-Rated Fiber Active Optical Cable, Extension/Repeater, 15m
U330F-15M-G1 | TC-U330F15MG
Please sign in to view pricing, availability, and to add to cart.
Product Overview
Active Optical Cable Extension Connects Servers, Hard Drives and Other USB Components
This USB 3.2 Gen 1 extension/repeater cable (M/F) attaches to your current USB cable to extend your USB connection by 15 meters (49 feet). The U330F-15M-G1 connects computers, servers, external hard drives, surveillance cameras and other devices with a USB-A port. Note: You must first connect the USB-A male connector, then the USB-A female connector.
Supports USB 3.2 Gen 1 Speeds for Reliably Fast Data Transfers

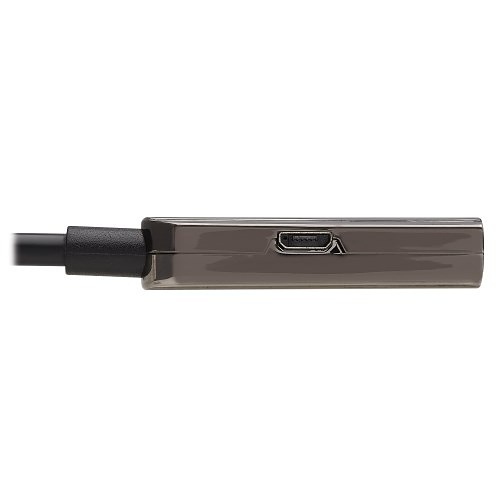

This cable supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. If you need an extra signal boost, connect the cable's USB Micro-B port to a laptop, hub or USB wall charger with the included cable. Note: This USB cable is not backward compatible with USB 2.0 or USB 1.1 devices.
Active Optical Cables Are Easier to Install than Copper
Because the fiber cable is slimmer and more flexible than standard copper USB cables, the U330F-15M-G1 is easier to install around corners and in hard-to-reach spaces behind equipment. It also transmits USB signals over longer distances than copper with no signal loss.
15 m (49 ft.) Cable Lets You Design an Application to Your Custom Specifications
This long cable allows you greater flexibility in placing your USB components. For instance, your desktop computer may be connected to a security camera or a server located in a different room away from your office or in a central location where others have access to it.
Premium Construction for Superior Performance
The PVC jacket carries a CL3 rating, making it suitable for in-wall cable installation in residential or commercial settings. Gold-plated contacts provide maximum conductivity and minimum data loss to guarantee a clear transmission free of interference. The plug-and-play U330F-15M-G1 supports all major operating systems, including Windows, macOS and Linux.
Main Features
- USB 3.2 Gen 1 speeds up to 5 Gbps
- 15 m (49') Extension for flexible placement
- Slim, flexible fiber Cable for easy installation
- CL3-rated PVC jacket for in-wall installation

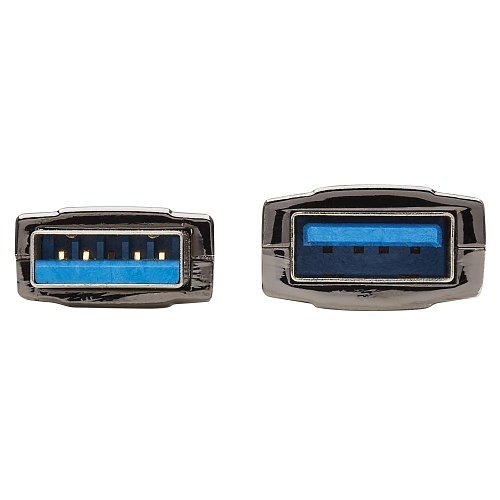

- Gold-Plated contacts for clear transmission
- Plug-and-play with major OS compatibility
- Not backward compatible with USB 2.0/1.1
General Information
Specifications
ADI Part Number TC-U330F15MG Application/Usage Commercial, Residential Brand Name Eaton Tripp Lite Country of Origin VN Manufacturer Eaton Manufacturer Part Number U330F15MG1 Product Model U330F-15M-G1 Product Name U330F-15M-G1 Fiber Optic Extension Data Transfer Cable Product Type Data Transfer Cable
American Wire Gauge 24AWG Cable Type Fiber Optic Connector Plating Nickel Contact Plating Gold Device Supported Computer, External Hard Drive, Home Theater System, Hub, Notebook, Server, Surveillance Camera, Wall Charger Jacket Type CL3
Data Transfer Rate 5.00Gbps
Cable Length 49.00' Jacket Material PVC
Limited Warranty 3-Year
Environmentally Friendly Yes Features AOC Technology, Flexible, Repeater, Signal Booster Package Contents - U330F-15M-G1 USB 3.2 Gen 1 Fiber Active Optical Extension Cable, M/F, Black, 15 m (49 ft.)
- USB Micro-B to USB-A booster cable, M/M, 3 ft.
