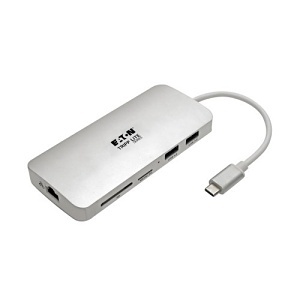

Image of TC-U442DCK1

Eaton Tripp Lite U442-DOCK11-S USB-C Dock, 4K HDMI, USB 3.2 Gen 1, USB-A/C Hub, GbE, Memory Card, 60W PD Charging

U442-DOCK11-S|TC-U442DCK1

Eaton Tripp Lite U442-DOCK11-S USB-C Dock, 4K HDMI, USB 3.2 Gen 1, USB-A/C Hub, GbE, Memory Card, 60W PD Charging

U442-DOCK11-S|TC-U442DCK1
Key Features
What's Included
  • USB-C Dock with 4K HDMI and USB 3.x support
  • 60W PD Charging for fast Power delivery
  • Supports USB-C DisplayPort Alt Mode for 4K video
Key Features
What's Included
  • USB-C Dock with 4K HDMI and USB 3.x support
  • 60W PD Charging for fast Power delivery
  • Supports USB-C DisplayPort Alt Mode for 4K video

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • USB-C Dock with 4K HDMI and USB 3.x support
  • 60W PD Charging for fast Power delivery
  • Supports USB-C DisplayPort Alt Mode for 4K video
Eaton Tripp Lite

Eaton Tripp Lite U442-DOCK11-S USB-C Dock, 4K HDMI, USB 3.2 Gen 1, USB-A/C Hub, GbE, Memory Card, 60W PD Charging

U442-DOCK11-S | TC-U442DCK1

Please sign in to view pricing and availability and to add to cart.

Accessories

Cable Raceways
Image of 0E-75DW2
ADI # 0E-75DW2
MODEL # 0E-75DW2
Sign In for Dealer Pricing
Cable Ties & Straps
W Box Cable Tie
ADI # 0E-HOOKLOOP
MODEL # 0E-HOOKLOOP
Sign In for Dealer Pricing
Conduit
W Box UL Listed Corrugated Flexible Conduit w/ Nylon Pull Tape 1" X 100'
ADI # 0E-RG100100
MODEL # 0E-RG100100
Sign In for Dealer Pricing
Conduit
W Box 0E-RG15050 1 1/2" x 50' Corrugated Flexible Conduit, Orange
ADI # 0E-RG15050
MODEL # 0E-RG15050
Sign In for Dealer Pricing
Pro HDMI Cables
Image of TC-P566006
ADI # TC-P566006
MODEL # P566-006
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

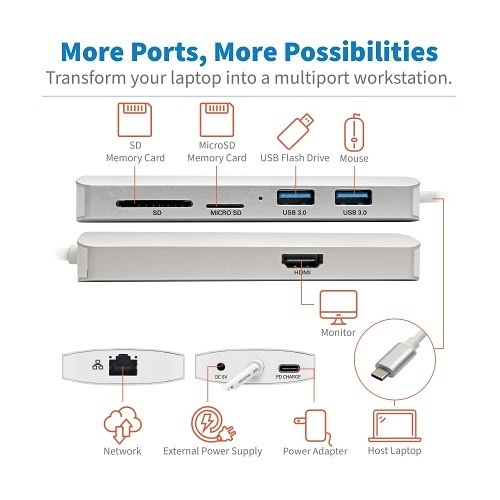

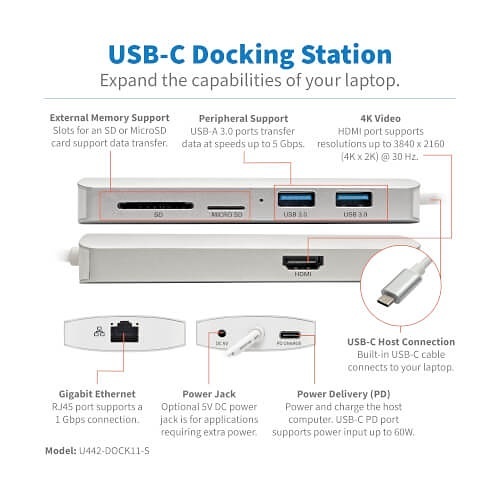

USB-C Dock Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport Workstation

The U442-DOCK11-S expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for connecting to a wired Gigabit Ethernet network, transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device and more-all at the same time.

Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals

With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

Transmits Crystal-Clear 4K Video and Digital Audio

To send digital audio and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the corresponding port to the display using an HDMI cable (sold separately). The HDMI port supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz. A DVI display may also be connected using an HDMI to DVI adapter (adapters sold separately).

Accesses a Wired Gigabit Ethernet Network

The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

Connects Keyboards, Thumb Drives and Other USB Peripherals

The USB-A hub ports accept up to two USB peripherals, such as flash drives, mice, keyboards and printers. They support fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices.

Charges the Connected PD Charging Device or Provides Data Transfer up to 5 Gbps

The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the USB-C dock is connected to. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 60W. It also doubles as a USB-C hub port and supports data transfer rates up to 5 Gbps.

Allows External Memory Access

Memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. Both memory card slots can be used at the same time.

Built-In USB-C Cable Connects in Either Direction

Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

Ready to Use Right Out of the Package

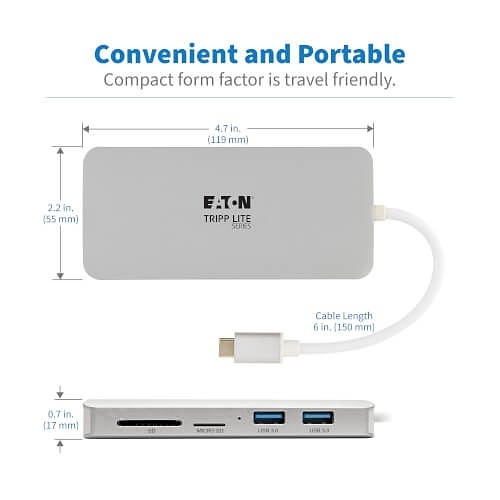

The plug-and-play USB Type-C dock requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go. It automatically resumes operation from hibernation and suspend modes. If additional power is required, the 5V DC power jack is compatible with power supplies equipped with a 3.5 x 1.35 x 9.5 millimeter output plug, a positive tip and a negative sleeve.

3-Year Warranty and Environmentally Responsible Design

The U442-DOCK11-S comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

Main Features

  • USB-C Dock with 4K HDMI and USB 3.x support
  • 60W PD Charging for fast Power delivery
  • Supports USB-C DisplayPort Alt Mode for 4K video
  • Gigabit Ethernet port for fast wired connections
  • Two USB 3.2 Gen 1 Ports for peripherals
  • Compatible with Micro SD and SD/MMC cards
  • Reversible USB-C Plug for easy connection
  • Plug-and-play, no software required
  • Compact design for portability

General Information

Name: Eaton Tripp Lite U442-DOCK11-S USB-C Dock, 4K HDMI, USB 3.2 Gen 1, USB-A/C Hub, GbE, Memory Card, 60W PD Charging
Category: Pro AV, Commercial Connector Cables, Pro Cable Adapters
UPC Code: 037332213372
Country of Origin: China. Country of origin is subject to change.
