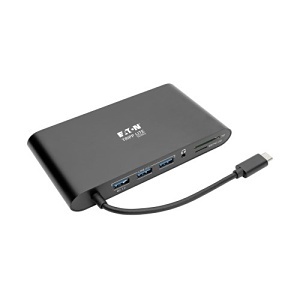

Image of TC-U442DOCK

Eaton Tripp Lite U442-DOCK1-B USB-C Dock, Dual Display, 4K HDMI mDP, VGA, USB 3.2 Gen 1, USB-A/C Hub, GbE, Memory Card, 100W PD Charging

U442-DOCK1-B|TC-U442DOCK

Eaton Tripp Lite U442-DOCK1-B USB-C Dock, Dual Display, 4K HDMI mDP, VGA, USB 3.2 Gen 1, USB-A/C Hub, GbE, Memory Card, 100W PD Charging

U442-DOCK1-B|TC-U442DOCK
Key Features
What's Included
  • USB-C Dock with Dual 4K Display Support
  • Compatible with USB-C and Thunderbolt 3
  • Supports 4K HDMI and mDP, 1080p VGA
Key Features
What's Included
  • USB-C Dock with Dual 4K Display Support
  • Compatible with USB-C and Thunderbolt 3
  • Supports 4K HDMI and mDP, 1080p VGA

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • USB-C Dock with Dual 4K Display Support
  • Compatible with USB-C and Thunderbolt 3
  • Supports 4K HDMI and mDP, 1080p VGA
Eaton Tripp Lite

Eaton Tripp Lite U442-DOCK1-B USB-C Dock, Dual Display, 4K HDMI mDP, VGA, USB 3.2 Gen 1, USB-A/C Hub, GbE, Memory Card, 100W PD Charging

U442-DOCK1-B | TC-U442DOCK

Please sign in to view pricing and availability and to add to cart.

Accessories

Cable Raceways
Image of 0E-75DW2
ADI # 0E-75DW2
MODEL # 0E-75DW2
Sign In for Dealer Pricing
Cable Ties & Straps
W Box Cable Tie
ADI # 0E-HOOKLOOP
MODEL # 0E-HOOKLOOP
Sign In for Dealer Pricing
Conduit
W Box UL Listed Corrugated Flexible Conduit w/ Nylon Pull Tape 1" X 100'
ADI # 0E-RG100100
MODEL # 0E-RG100100
Sign In for Dealer Pricing
Conduit
W Box 0E-RG15050 1 1/2" x 50' Corrugated Flexible Conduit, Orange
ADI # 0E-RG15050
MODEL # 0E-RG15050
Sign In for Dealer Pricing
Pro HDMI Cables
Image of TC-P566006
ADI # TC-P566006
MODEL # P566-006
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport Workstation

The U442-DOCK1-B expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more-all at the same time.

Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals

With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

Transmits Crystal-Clear 4K Video and Digital Audio

To send digital audio and Ultra High Definition video to a 4K-ready HDMI or Mini DisplayPort television, projector or monitor, connect the corresponding port to the display using an HDMI or mDP cable (sold separately). The Mini DisplayPort and HDMI ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Only one display can be connected at a time. A DisplayPort or DVI display may also be connected using an mDP to DP or HDMI to DVI adapter (adapters sold separately).

Connects USB Peripherals

The USB-A hub ports accept up to three USB peripherals, such as flash drives, mice, keyboards and printers. They support fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. A BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices.

Charges a Connected Device

The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the U442-DOCK1-B is connected to. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 60W-45W for the USB-C device and 15W dedicated to the U442-DOCK1-B and its USB-A hub ports.

Accesses a Wired Gigabit Ethernet Network

The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

Connects Audio Equipment

The USB-C dock's 3.5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.

Allows External Memory Access

The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet.

Built-In USB-C Cable Connects in Either Direction

Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

Ready to Use Right Out of the Package

The plug-and-play USB-C dock for MacBooks, Chromebooks and other devices requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.

3-Year Warranty and Environmentally Responsible Design

The U442-DOCK1-B comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

Main Features

  • USB-C Dock with Dual 4K Display Support
  • Compatible with USB-C and Thunderbolt 3
  • Supports 4K HDMI and mDP, 1080p VGA
  • Connects up to 2 Displays Simultaneously
  • USB-A Hub with 3 Ports, 5Gbps Transfer
  • 100W PD Charging via USB-C Port
  • Gigabit Ethernet for Fast Wired Network
  • 3.5mm Audio Jack for Headphones/Mic
  • Micro SD and SD/MMC Card Slots
  • Plug-and-Play, No Software Required

General Information

Name: Eaton Tripp Lite U442-DOCK1-B USB-C Dock, Dual Display, 4K HDMI mDP, VGA, USB 3.2 Gen 1, USB-A/C Hub, GbE, Memory Card, 100W PD Charging
Category: Pro AV, Commercial Connector Cables, Pro Cable Adapters
UPC Code: 037332209153
Country of Origin: China. Country of origin is subject to change.
