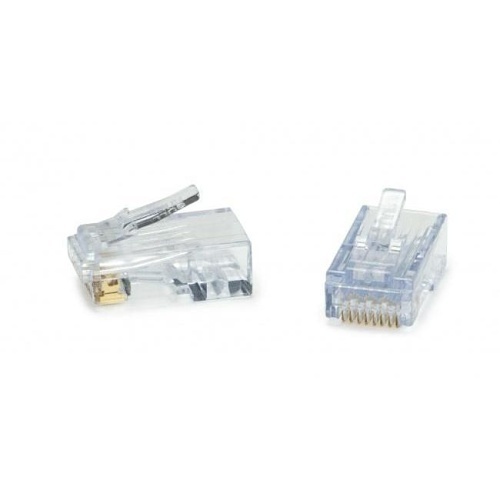

Platinum Tools 105025 ezEX-RJ45 CAT6a RJ45 UTP Connector, 500-Piece
105025|TS-105025
Platinum Tools 105025 ezEX-RJ45 CAT6a RJ45 UTP Connector, 500-Piece
105025|TS-105025
Key Features
- Hi-Lo stagger isolates each conductor for higher performance
- Simple one piece / pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: 0.043" – 0.048" (1.09 –1.22mm)
Key Features
- Hi-Lo stagger isolates each conductor for higher performance
- Simple one piece / pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: 0.043" – 0.048" (1.09 –1.22mm)
Key Features
- Hi-Lo stagger isolates each conductor for higher performance
- Simple one piece / pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: 0.043" – 0.048" (1.09 –1.22mm)
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

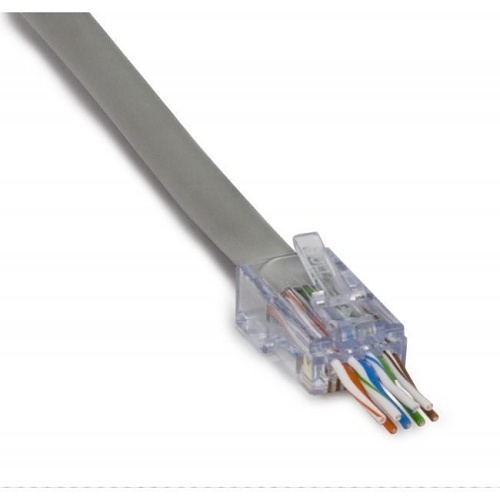

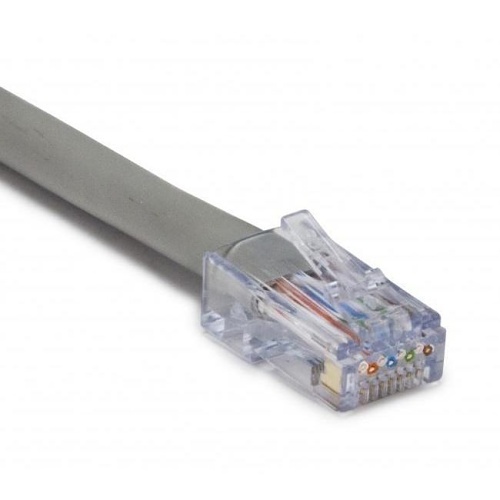

The ezEX-RJ45 (ezEX48 series) pass-through RJ45 connectors are specifically designed for cables with an insulation diameter ranging from 0.043" to 0.048" (1.09 – 1.22mm). These unshielded connectors come in a bulk bag packaging with 500 pieces included, ensuring you have plenty for your installation needs. With a maximum cable outer diameter of 0.305” (7.75mm), the ezEX48 connectors are compatible with solid or stranded 23-22AWG twisted pair cables, making them versatile for various networking applications. Each connector features 50-micron gold plated contacts and a unique Hi-Lo stagger design, which effectively isolates each conductor for improved signal integrity. The simple one-piece, pass-through design eliminates the need for additional bars or liners, simplifying the termination process. These connectors are compatible with both Cat5e and Cat6 cables and are rated for data and Power over Ethernet (PoE) applications. Furthermore, the ezEX48 connectors comply with TAA, TIA, RoHS, UL, and FCC standards and are protected by multiple U.S. patents (9,543,729 B2; 10,116,082 B2; & 10,573,990 B2), ensuring reliable performance and quality in your networking setups.
Main Features
- Hi-Lo stagger isolates each conductor for higher performance
- Simple one piece / pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: 0.043" – 0.048" (1.09 –1.22mm)
- Max outer diameter: 0.290" (7.36mm)
- Typically used with Cat6A
General Information
Name: Platinum Tools 105025 ezEX-RJ45 CAT6a RJ45 UTP Connector, 500-Piece
Category: Platinum Tools, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 849160008644
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number TS-105025 Brand Name Platinum Tools Manufacturer Part Number 105025
-
TAA Compliant Yes
-
Country of Origin US Environmental Certification FCC, RoHS, UL Environmentally Friendly Yes
