Bosch EVF-1122D/126-PIB 12" Premium Two-Way Full-Range Loudspeaker System, 120 x 60, Black
EVF-1122D/126-PIB|UV-12D126PIB
Bosch EVF-1122D/126-PIB 12" Premium Two-Way Full-Range Loudspeaker System, 120 x 60, Black
EVF-1122D/126-PIB|UV-12D126PIB
Key Features
- Listen to your favorite music and enjoy great sound with optimal audio output and maximum playback efficiency
- The 2-way Outdoor speakers with the 2400 W power handling work terrifically
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
Key Features
- Listen to your favorite music and enjoy great sound with optimal audio output and maximum playback efficiency
- The 2-way Outdoor speakers with the 2400 W power handling work terrifically
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Listen to your favorite music and enjoy great sound with optimal audio output and maximum playback efficiency
- The 2-way Outdoor speakers with the 2400 W power handling work terrifically
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
Electro-Voice by Bosch
Bosch EVF-1122D/126-PIB 12" Premium Two-Way Full-Range Loudspeaker System, 120 x 60, Black
EVF-1122D/126-PIB | UV-12D126PIB
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

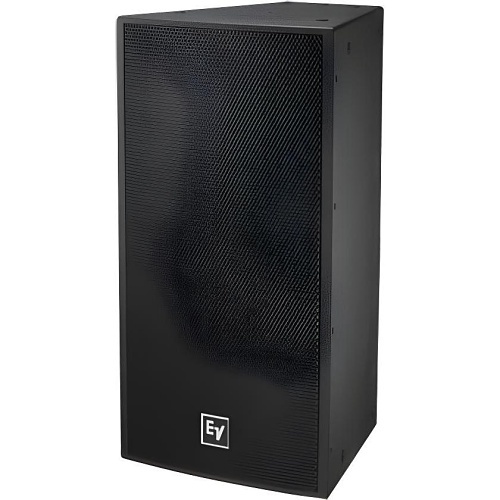

The Electro-Voice EVF-1122D/126-FG is a fully-weatherized, fiber- glass-coated, high-power, two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforce- ment is required in a compact, lightweight package.
The EVF-1122D/126-FG utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant DirectivityTM 120° x 60° waveguide. The DVX3121A 12" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equal- ization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.

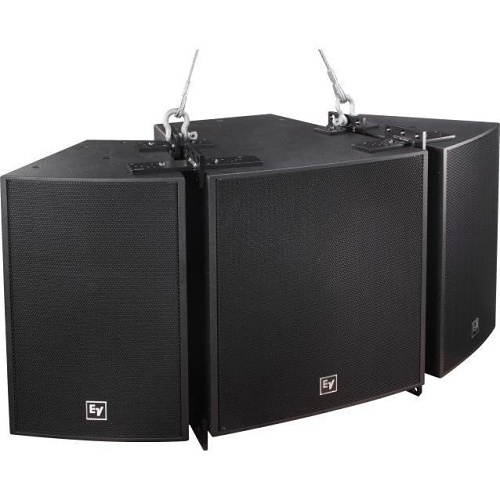

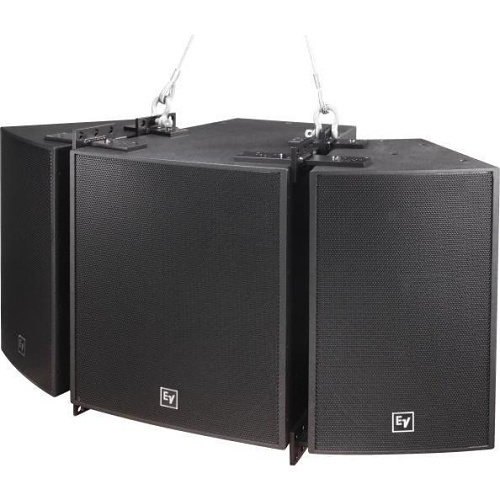

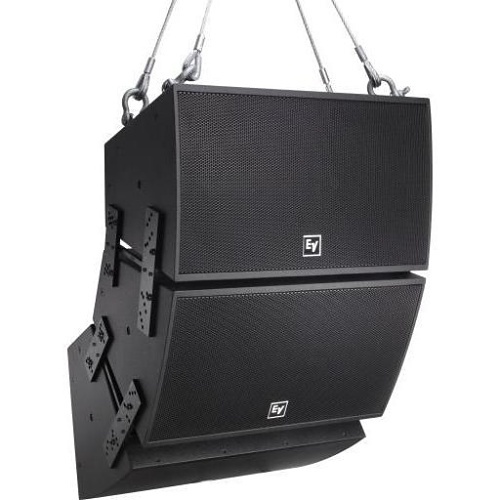

The EVF-1122D/126-FG's features make it ideal for many fixed-install applications, including applications with full exposure to outdoor elements. The trapezoidal enclosure is constructed of weather- resistant birch, and coated with fiberglass for maximum protection from extreme outdoor elements. The unique acoustic and rigging de- sign allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix- style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer require- ments with fewer items in inventory.
The EVF-1122D/126-FG utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant DirectivityTM 120° x 60° waveguide. The DVX3121A 12" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equal- ization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.
The EVF-1122D/126-FG's features make it ideal for many fixed-install applications, including applications with full exposure to outdoor elements. The trapezoidal enclosure is constructed of weather- resistant birch, and coated with fiberglass for maximum protection from extreme outdoor elements. The unique acoustic and rigging de- sign allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix- style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer require- ments with fewer items in inventory.
Main Features
- Listen to your favorite music and enjoy great sound with optimal audio output and maximum playback efficiency
- The 2-way Outdoor speakers with the 2400 W power handling work terrifically
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear every detail crisp and clear with a frequency response of 66 Hz-21 kHz
- Knock yourself out with 600 W RMS power
- 12" woofer driver size allows better stereo imaging with maximum sound feasibility
- 3" tweeter driver size provides crispier, well-detailed sound with maximum productivity
- Offers great productivity with 21 kHz maximum frequency response
- 110 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- Outdoor speaker installation provides the dependable portable playback efficiency to effectively reduce power consumption and save energy and costs
General Information
Name: Bosch EVF-1122D/126-PIB 12" Premium Two-Way Full-Range Loudspeaker System, 120 x 60, Black
Category: Electro-Voice by Bosch, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number UV-12D126PIB Brand Name Electro-Voice by Bosch Manufacturer The Bosch Group Manufacturer Part Number EVF-1122D/126-PIB Packaged Quantity 1 Product Line Premium Product Name Single 12" Two-Way 120° x 60° Full-Range Fully-Weatherized Loudspeaker System Product Series EVF Product Type Speaker Weight 65.50lb
-
Crossover Type 2-way Impedance 8 ohms Sensitivity 110dB
-
Maximum Frequency Response 21 kHz Minimum Frequency Response 66Hz RMS Output Power 600W
-
Sound Emission 110 dB
-
Color Black Depth 16.27" Height 30.3" Material Titanium Size 12" Width 16"
-
Diameter 12"
-
Indoor/Outdoor Outdoor
