Product Overview

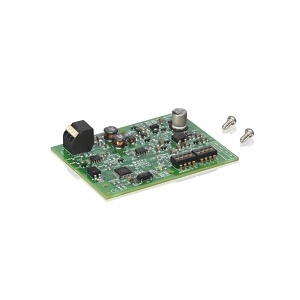

The End-of-line (EOL) supervision module monitors the integrity of a loudspeaker line and can be used in applications where continuous business music is requested. In combination with the EOL master, integrated in every Controller and Router of the PAVIRO system, the loudspeaker line can be monitored for short and open circuits. The status LED on the module can be used to check the installation. For more information, refer to the user documentation for the IRIS-Net, Controller or Router
Main Features
- Compatible with 100 V, 70 V, or 50 V loudspeaker lines
- Module is powered via loudspeaker line (pilot tone)
- A single loudspeaker line can have multiple modules
- Up to 60 modules can be connected to one amplifier output channel
- EN 54-16 system certification
General Information
Name: Bosch PVA-1WEOL End-of-line Supervision Module
Category: Bosch, Pro AV, Commercial Audio, Pro Accessories & Mounts
UPC Code: 800549776493
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number UV-PVA1WEOL Brand Name Bosch Manufacturer Bosch Manufacturer Part Number PVA-1WEOL Packaged Quantity 1 Product Line PAVIRO Product Model PVA-1MPWEOL Product Name End-of-line Supervision Module Product Type End of Line (EOL) Supervision Board Weight (Approximate) (g) 30 Â
-
Depth 2"-362" Depth (mm) 60 Height 0"-59" Height (mm) 15 Weight (Approximate) 0661 lb Width 3-07" Width (mm) 78 Â
-
Power Source Power Supply Â
-
Environmental Certification RoHS Environmentally Friendly Yes Package Contents - End-of-line Supervision Module
- 1 x Set of Screws
- 1 x User Manual
