Viking E-60-BK-IP Double Gang Black VoIP Entry Phone, Black
E-60-BK-IP
|VK-E60BKIP
Shop all Viking Electronics
Viking E-60-BK-IP Double Gang Black VoIP Entry Phone, Black
E-60-BK-IP | VK-E60BKIP
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

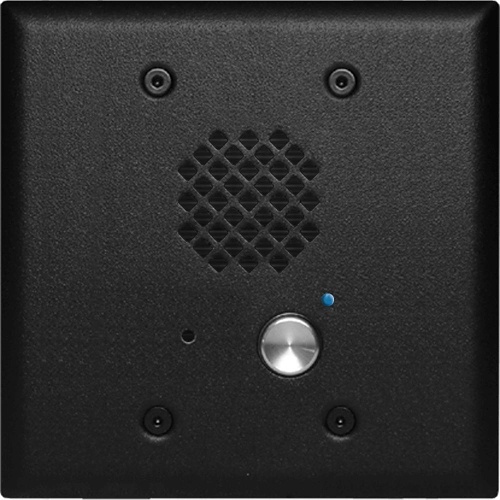

The E-60-IP's compact size allows it to be mounted in a standard double gang electrical box. The E-60-IP is available in four different attractive finishes to match your door hardware, light fixtures, etc. Replacement E-60 faceplates (PNL60) can be purchased separately and are available in all four standard finishes. The E-60-IP's blue LED continually provides light for locating the push button in dark locations, flashes during dialing and automatically lights again when the call is answered. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. All units are PoE powered.
Main Features
- Compact-Front panel is the size of a typical double gang mid-size wall plate
- Mounting-Flush mounts in a double gang electrical box (2.25" deep x 3.65" wide x 2.84" tall minimum) or surface mounts in an optional VE 5x5 (see DOD 424) for mounting to a wall, post or VE-GNP Gooseneck Pedestal (EWP recommended)
- Available in 4 standard faceplate finishes-Brushed Stainless Steel, Oil Rubbed Bronze, Textured Black and Satin White
- PNL-60 faceplates-Replacement faceplates with matching screws available in all four standard finishes
- Self diagnostic reports via email (testing com, microphone, speaker, and switch)
- Automatic polling and programming software included
- 2A relay contacts for door / gate or SL-2 strobe light control
- Blue LED indicator
- SIP compliant (see page 2 for compatible SIP servers and IP phone systems)
- Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
General Information
Name: Viking E-60-BK-IP Double Gang Black VoIP Entry Phone, Black
Category: Viking Electronics, Communications, Intercoms & Telephone Entry, Intercom Door Stations
UPC Code: 615687226232
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number VK-E60BKIP Brand Name Viking Electronics Manufacturer Part Number E-60-BK-IP
Color Black
Mount Type Flush Mount, Surface Mount
Compatibility Doors, Gates Country of Origin US Environmental Certification Canada ICES, CE, FCC Part 15, SIP Indoor/Outdoor Outdoor
