Product Overview

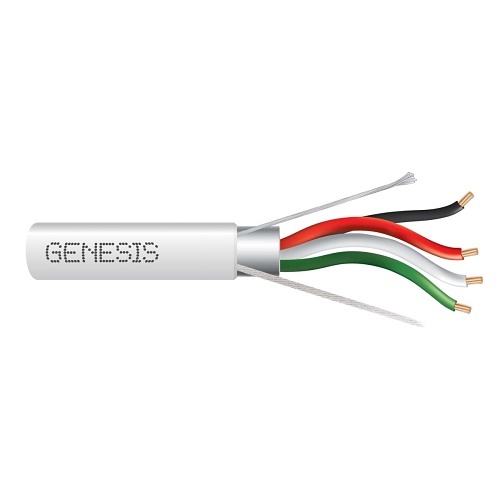

This Genesis® cable features 4 stranded 22 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
General Information

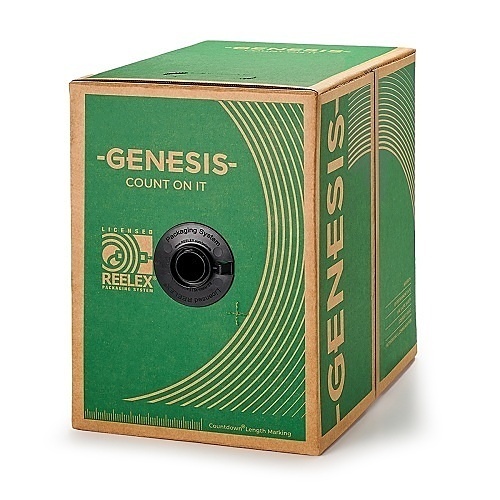

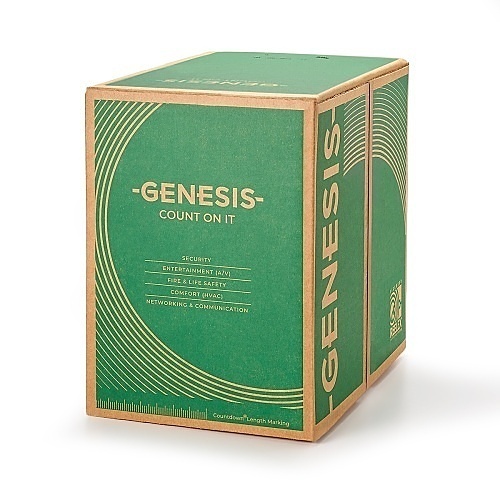

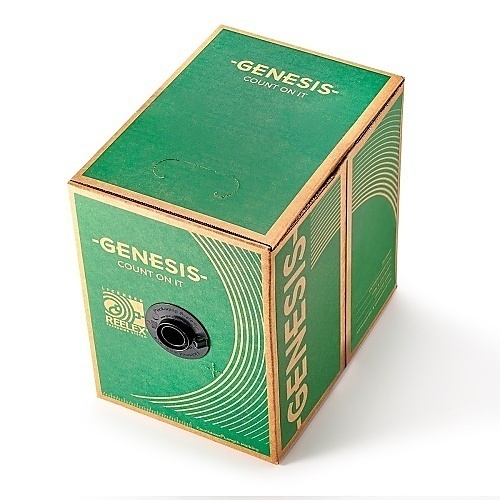

Name : Genesis 32041112 22/4 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 1000' (304.8m), REELEX Pull Box, Natural White , Genesis
Category : Stranded Plenum Shielded Cables
UPC Code : 619172022354
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : WG-32041112
Brand Name : Genesis
Manufacturer : Genesis Cable
Manufacturer Part Number : 32041112
Packaged Quantity : 1
Product Model : 32041112
Product Name : 32041112 Control Cable
Product Type : Control Cable
Weight (Approximate) (g) : 7711.07
Technical Information
American Wire Gauge : 22AWG
Cable Listing : CL3P, CMP, FPLP, FT6
Cable Type : Stranded Plenum Shielded Cables
Connector on First End : Bare Wire
Connector on Second End : Bare Wire
Core/Cladding Diameter : 22/4
Device Supported : Burglar Alarm, Intercom, Phone, Speaker
Jacket Type : CMP, FT6, Plenum
Material : Polyvinyl Chloride (PVC) - Jacket
Number of Conductors : 4
Number of Pairs : 2
Shielding : Yes
Solid or Stranded : Stranded
Lock
Cable Length (mm) : 304800
Physical Characteristics
Cable Length : 1000'
Color : White
Insulation Material : Plenum PVC
Package Type : Pull Box
Weight (Approximate) : 17 lb
Miscellaneous
Environmental Certification : RoHS
Features : Stranded
