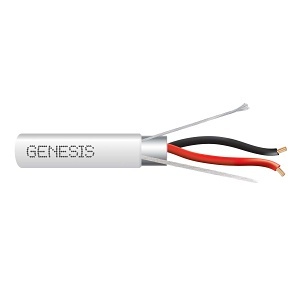

Genesis 32141012 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural
32141012|WG-32141012
Genesis 32141012 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural
32141012|WG-32141012
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Genesis
Genesis 32141012 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural
32141012 | WG-32141012
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 32141012 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Shielded Cables
UPC Code: 619172022521
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-32141012 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 32141012 Packaged Quantity 1 Product Model 32141012 Product Name 32141012 Control Cable Product Type Access & Security Cable
-
American Wire Gauge 18AWG Cable Rating Plenum Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Core/Cladding Diameter 18/2 Device Supported Alarm, Phone Jacket Material LS PVC Jacket Type Riser Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 1000' Color Natural Insulation Material LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
