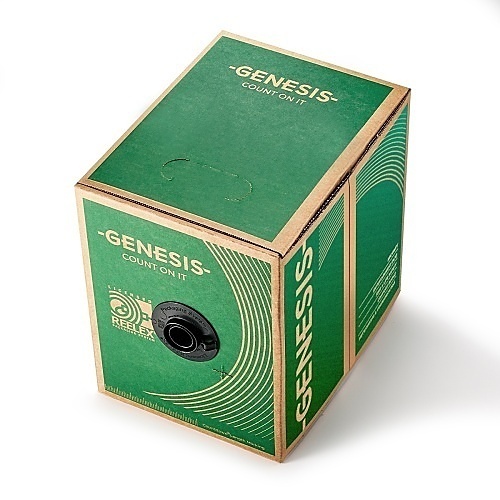

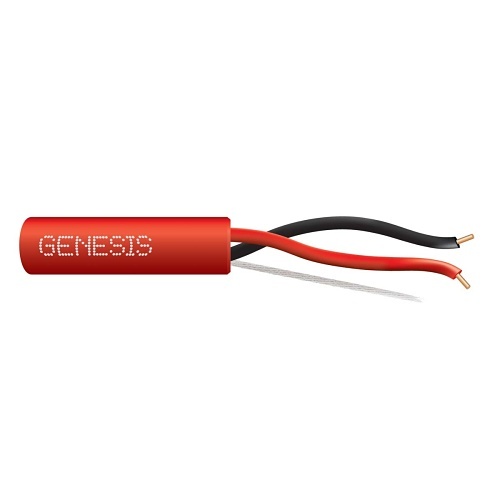

Genesis 43115504 16/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
43115504|WG-43115504
Genesis 43115504 16/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
43115504|WG-43115504
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Genesis
Genesis 43115504 16/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
43115504 | WG-43115504
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 43115504 16/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Non-Plenum Unshielded Cables
UPC Code: 619172027472
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-43115504 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 43115504 Packaged Quantity 1 Product Model 43115504 Product Name 43115504 Control Cable Product Type Fire Alarm Cable Weight 11.20 lb
-
American Wire Gauge 16AWG Cable Rating Riser Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 16/2 Device Supported Fire Alarm Jacket Material PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid
-
TAA Compliant Yes
-
ADI Part Number Replaces WG-41115504 Model Number Replaces 41115504
-
Cable Length 500' Color Red Insulation Material PP Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
