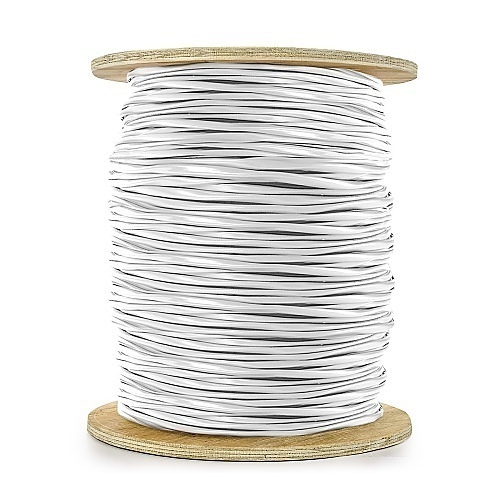

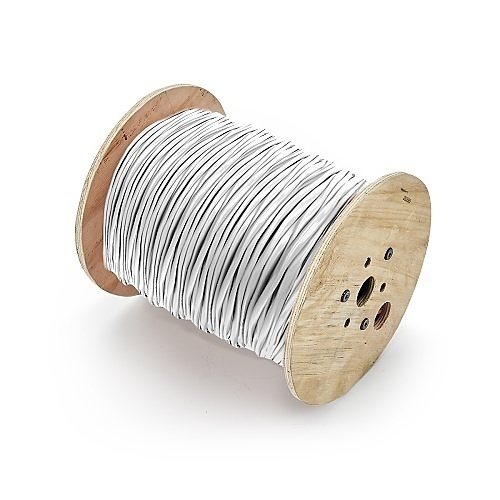

Genesis 53555012 RG59 BC 75 Ohm Coaxial with Bare Copper Braid + 18/2 Stranded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural
53555012|WG-53555012
Genesis 53555012 RG59 BC 75 Ohm Coaxial with Bare Copper Braid + 18/2 Stranded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural
53555012|WG-53555012
Key Features
- Solid Bare Copper center conductor for excellent conductivity and low voltage drop
- FEP insulation
- 95% coverage braid shield
Key Features
- Solid Bare Copper center conductor for excellent conductivity and low voltage drop
- FEP insulation
- 95% coverage braid shield
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Solid Bare Copper center conductor for excellent conductivity and low voltage drop
- FEP insulation
- 95% coverage braid shield
Genesis
Genesis 53555012 RG59 BC 75 Ohm Coaxial with Bare Copper Braid + 18/2 Stranded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural
53555012 | WG-53555012
Please sign in to view pricing and availability and to add to cart.
Accessories
Coaxial Cable Connectors & Splitters
ADI # 0E-BNCCRIMPT
MODEL # 0E-BNCCRIMPT
0E-BNCCRIMPT|0E-BNCCRIMPT
Sign In for Dealer Pricing
Coaxial Cable Connectors & Splitters
ADI # 0E-BNCFF75TP
MODEL # 0E-BNCFF75TP
Sign In for Dealer Pricing
Coaxial Cable Connectors & Splitters
ADI # 0E-BNCT56PTP
MODEL # 0E-BNCT56PTP
0E-BNCT56PTP|0E-BNCT56PTP
Sign In for Dealer Pricing
Magnetic Locks
ADI # 0E-MAG1200LB
MODEL # 0E-MAG1200LB
0E-MAG1200LB|0E-MAG1200LB
Sign In for Dealer Pricing
Magnetic Locks
ADI # 0E-MAG1200DS
MODEL # 0E-MAG1200DS
0E-MAG1200DS|0E-MAG1200DS
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Genesis Baseband CCTV Coaxial Cables ensure continuous video connectivity for analog video surveillance systems. Bare copper center conductors minimize voltage drop to preserve excellent video quality.
Main Features
- Solid Bare Copper center conductor for excellent conductivity and low voltage drop
- FEP insulation
- 95% coverage braid shield
- Plenum PVC jacket
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 53555012 RG59 BC 75 Ohm Coaxial with Bare Copper Braid + 18/2 Stranded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural
Category: Genesis, Wire & Cable, Coaxial Cables
UPC Code: 619172027069
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-53555012 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 53555012 Packaged Quantity 1 Product Model 53555012 Product Name 53555012 Coaxial Audio/Video Cable Product Type Coaxial Cable Weight 23.60 lb
-
American Wire Gauge 18AWG, 20AWG Cable Rating Plenum Cable Type RG-59 + Power Conductor Count 3 Conductor Material Bare Copper Device Supported Audio/Video Device Impedance 75 ohms Jacket Material LS PVC Jacket Type FT6, Plenum Number of Conductors 1|2 Shielding Yes Solid or Stranded Solid|Stranded
-
TAA Compliant Yes
-
ADI Part Number Replaces RM-725526L1W, RM-725526L3W, WG-53551008, WG-53551012, WG-53556112 Model Number Replaces 53551008, 53551012, 53556112, 725526L1W, 725526L3W
-
Cable Length 500' Color Natural Insulation Material FEP, LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Indoor/Outdoor Indoor
