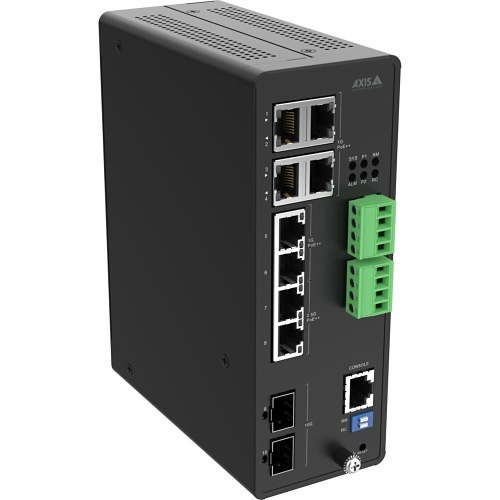

AXIS D8208-R 8-Port Managed Industrial PoE++ Switch, 480W Power Budget
D8208-R|Z4-02621001
AXIS D8208-R 8-Port Managed Industrial PoE++ Switch, 480W Power Budget
D8208-R|Z4-02621001
Key Features
- 480 W power budget
- Compliant with IEEE 802.3bt up to 90 W
- Familiar and intuitive Axis interface
Key Features
- 480 W power budget
- Compliant with IEEE 802.3bt up to 90 W
- Familiar and intuitive Axis interface
.jpg)
Key Features
- 480 W power budget
- Compliant with IEEE 802.3bt up to 90 W
- Familiar and intuitive Axis interface
Axis Communications
AXIS D8208-R 8-Port Managed Industrial PoE++ Switch, 480W Power Budget
D8208-R | Z4-02621001
Please sign in to view pricing and availability and to add to cart.
Accessories
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Pro HDMI Cables
ADI # OG-B6A4K220
MODEL # OG-B6A4K220
OG-B6A4K220|OG-B6A4K220
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
This rugged 8-port switch is ideal for demanding installations. Designed to withstand shock and vibrations, it can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Each port can deliver up to 90 W PoE++ (IEEE 802.3bt) with a total power budget of 480 W. Plus, it also supports fiber ensuring flexible long-distance installations. Furthermore, featuring a familiar Axis interface with a graphic topology for easy overview of devices, AXIS D8208-R ensures easy configuration with Axis products.
Main Features
- 480 W power budget
- Compliant with IEEE 802.3bt up to 90 W
- Familiar and intuitive Axis interface
- High availability with Rapid Ring
- NEMA TS-2 Compliant
General Information
Name: AXIS D8208-R 8-Port Managed Industrial PoE++ Switch, 480W Power Budget
Category: Axis Communications, Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code: 7331021080225
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02621001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02621-001 Product Line D Product Model D8208-R Product Name AXIS D8208-R INDUSTRIAL PoE++ SWITCH Product Series D82 Product Type Network Switches
-
Media Type Supported Optical Fiber, Twisted Pair
-
Operating Temperature (T-T) -40-60°C
-
Expansion Slot Type SFP+ Number of SFP+ Slots 2 Number of Total Expansion Slots 2
-
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 8 Uplink Port Yes
-
Manageable Yes Security Features IEC/EN 62368-1 ed.3|UL 62368-1 ed.3
-
Network Technology 1000Base-T, 10GBase-X
-
Ethernet Technology 10 Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3bt
-
Maximum Power Consumption 34W PoE (RJ-45) Port Yes PoE Budget 480W
-
Mount Type Cabinet Mount
-
Limited Warranty 5-Year
-
Certifications EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, RCM AS/NZS CISPR 32 Class A, VCCI Class A Country of Origin TW Environmental Certification IEC 60068-2-27, IEC 60068-2-6, NEMA TS 2 (2.2.7-2.2.9)
