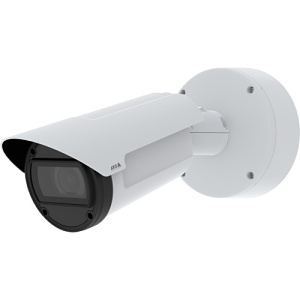

AXIS Q1809-LE 150 mm 41MP Bullet Camera, 50-150mm Varifocal Lens, 3x Optical Canon Zoom Lens, White

Q1809-LE|Z4-03019001

Shop all Axis Communications

AXIS Q1809-LE 150 mm 41MP Bullet Camera, 50-150mm Varifocal Lens, 3x Optical Canon Zoom Lens, White

Q1809-LE|Z4-03019001

Key Features

Built-in cybersecurity with Axis Edge Vault
Extreme detail at great distances
High light-sensitive 4/3” sensor

Key Features

Built-in cybersecurity with Axis Edge Vault
Extreme detail at great distances
High light-sensitive 4/3” sensor

Sign In for Dealer Pricing

Become an ADI Customer

Key Features

Built-in cybersecurity with Axis Edge Vault
Extreme detail at great distances
High light-sensitive 4/3” sensor

Axis Communications

AXIS Q1809-LE 150 mm 41MP Bullet Camera, 50-150mm Varifocal Lens, 3x Optical Canon Zoom Lens, White

Q1809-LE | Z4-03019001

Please sign in to view pricing and availability and to add to cart.

Accessories

Video Surveillance Monitors

W Box 0E-20LED2 20" Full HD Pro-Grade Color Monitor, HDMI, VGA, and BNC Inputs

ADI # 0E-20LED2

MODEL # 0E-20LED2

Capture Advance

Capture 0E-20LED2 20" Full HD Pro-Grade Color Monitor, 24/7/365 Operating Capability

0E-20LED2|0E-20LED2

Power Conditioners

ADI # WT-WB700IP12

MODEL # WT-WB700IP12

WattBox

WattBox WB-700-IPV-12 IP Power Conditioner with OvrC Home, 12-Controlled Outlets

WT-WB700IP12|WT-WB700IP12

Power Conditioners

ADI # WT-WB800IP12

MODEL # WT-WB800IP12

WattBox

WattBox WB-800-IPVM-12 800 Series IP Power Conditioner, 12-Individually Controlled and Metered Outlets

WT-WB800IP12|WT-WB800IP12

Video Surveillance Monitors

ADI # 0E-22LED3

MODEL # 0E-22LED3

Capture Advance

Capture 0E-22LED3 22" Select Series BNC Frameless LED Monitor

0E-22LED3|0E-22LED3

Network Video Recorders (NVRs)

ADI # VM-NVR16CH6T

MODEL # VM-NVR16CH6T

Luma

Luma LUM-220-NVR-16CH-0T 220 Series 16-Channel NVR, 16-Port PoE, 2 HDD Bay, 6TB

VM-NVR16CH6T|VM-NVR16CH6T

Overview

Specifications

Documents

Product Overview

Built on a dual Axis system-on-chip, this all-in-one, outdoor-ready bullet camera delivers superior 41 MP resolution. And a 4/3” image sensor ensures exceptional low-light performance. It’s available with a wide lens for open areas or a tele lens for surveillance from a distance. Enclosed in a robust aluminum casing, it includes a mounting arm for easy installation. Plus, a spacious back box ensures secure cable management. Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. Furthermore, PoE out lets you connect and power another device without additional cabling.

Main Features

Built-in cybersecurity with Axis Edge Vault
Extreme detail at great distances
High light-sensitive 4/3” sensor
Out-of-the-box and outdoor-ready
Superior image quality in 8K
Wide or tele Canon lens

General Information

Name: AXIS Q1809-LE 150 mm 41MP Bullet Camera, 50-150mm Varifocal Lens, 3x Optical Canon Zoom Lens, White

Category: Axis Communications, Video Surveillance, IP Cameras, Bullet Cameras

UPC Code: 7331021087910

Country of Origin: Poland. Country of origin is subject to change.

Specifications

ADI Part Number

Z4-03019001

Brand Name

AXIS Communications

Manufacturer

Axis Communications

Manufacturer Part Number

03019-001

Product Model

Q1809-LE

Product Name

AXIS Q1809-LE 150 mm

Product Series

Q18

Product Type

Fixed cameras

Supported Network Protocols

IPv6 USGv6|NIST SP500-267

Aperture

f/4.0

Field of View

Horizontal, Vertical

Lens Type

Varifocal

Maximum Frame Rate

30fps

Minimum Focal Length

5mm

Night Vision

Yes

Optical Zoom

Image Sensor Type

CMOS

Ingress Protection Rating

IP66, IP67

Image Sensor Size

4/3"

Maximum Video Resolution

7424 x 5568

Operating Temperature (T-T)

-40-131°F

Minimum Illumination

0.04 lux

Focal Length

50-150mm

Lens Included

Yes

Maximum Focal Length

150 mm

Memory Card Supported

Yes

Remote Management

Yes

ADI Part Number Replaces

CZ-0963001, Z4-01118001

Model Number Replaces

01118-001, 0963-001

Color

White

Maximum Power Consumption

51W

Power over Ethernet (PoE)

Yes

Recording Formats

Maximum Resolution

1280 x 720

Certifications

CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES(A)/NMB(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Certifications & Standards

ONVIF G, ONVIF M, ONVIF S, ONVIF T

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Impact Protection Rating

IK08, IK10

Indoor/Outdoor

Outdoor
