AXIS T92E20 Outdoor PoE+ Camera Housing for P13, M11, Q16 and Q1755 Cameras
T92E20|Z4-0433001
AXIS T92E20 Outdoor PoE+ Camera Housing for P13, M11, Q16 and Q1755 Cameras
T92E20|Z4-0433001
Key Features
What's Included
- Arctic Temperature Control
- Dual shell
- IK10-rated
Key Features
What's Included
- Arctic Temperature Control
- Dual shell
- IK10-rated
Key Features
What's Included
- Arctic Temperature Control
- Dual shell
- IK10-rated
Axis Communications
AXIS T92E20 Outdoor PoE+ Camera Housing for P13, M11, Q16 and Q1755 Cameras
T92E20 | Z4-0433001
Please sign in to view pricing and availability and to add to cart.
Accessories
Housing & Mounting Accessories
ADI # Z4-5900161
MODEL # 5900-161
5900-161|Z4-5900161
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

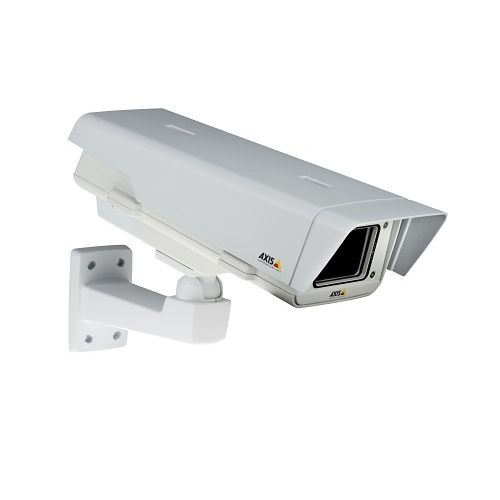

AXIS T92E20 protects Axis fixed network camera in adverse conditions. An internal shell stores heat in cold environments, and fan ventilation transfers excess heat to the outer chassis for efficient cooling in hot environments. Arctic Temperature Control ensures that the camera can start up even at -40 °C (-40 °F) following a power failure. One-cable installation with Power over Ethernet or High Power over Ethernet connection. AXIS T92E20 is IP66- and NEMA 4X-rated against the ingress of dust, rain, high pressure water jets and damage from external ice formation. It is also IK10-rated for protection against impact and vandal acts.
Main Features
- Arctic Temperature Control
- Dual shell
- IK10-rated
- IP66- and NEMA 4X-rated
- One-cable installation
General Information
Name: AXIS T92E20 Outdoor PoE+ Camera Housing for P13, M11, Q16 and Q1755 Cameras
Category: Axis Communications, Video Surveillance, Housings & Mounts, Housings
UPC Code: 7331021034211
Country of Origin: Poland. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-0433001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 0433-001 Product Line T Product Model T92E20 Product Name AXIS T92E20 OUTDOOR HOUSING Product Series T92E Product Type Housings Weight 5.51lb
-
Number of Fans 1
-
NDAA Compliant Yes TAA Compliant No
-
Security Features IEC/EN 62368-1|IEC/EN 60950-22
-
ADI Part Number Replaces Z4-5015204 Model Number Replaces 5015-204
-
Color White Material Aluminum, PC
-
Mount Type Wall Mount
-
Limited Warranty 3-Year
-
Certifications EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), VCCI Class B Compatibility Axis Network Cameras:AXIS M1113AXIS M1114AXIS P1343AXIS P1344AXIS P1346AXIS P1347AXIS Q1755 Country of Origin PL Environmental Certification IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X Features Dual-shell Indoor/Outdoor Outdoor Package Contents - T92E20 Camera Enclosure
- VT Wall Bracket

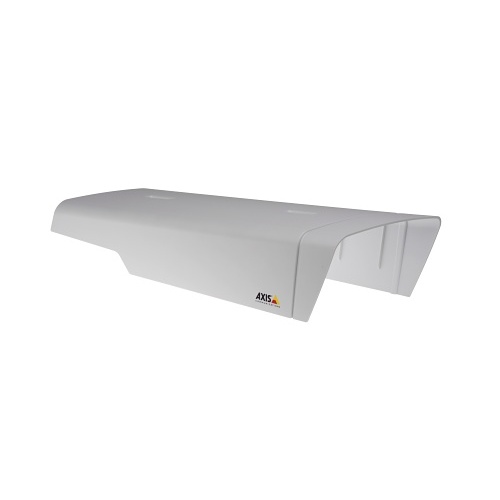

- Sunshield
- Ethernet Cable with Pre-Mounted Gasket
- 2 x Short Ethernet Cables
- User's Guide
