AXIS 5503-161 Theia Linear Optical Technology Varifocal Ultra-Wide Field of View, 1.8-3mm Lens, White
AXIS 5503-161 Theia Linear Optical Technology Varifocal Ultra-Wide Field of View, 1.8-3mm Lens, White
- A high-performance lens for professional photographers
- Designed to be used with surveillance camera
- A high-performance lens for professional photographers
- Designed to be used with surveillance camera
Sign In for Dealer Pricing
Become an ADI Customer- A high-performance lens for professional photographers
- Designed to be used with surveillance camera
AXIS 5503-161 Theia Linear Optical Technology Varifocal Ultra-Wide Field of View, 1.8-3mm Lens, White
5503-161 | Z4-5503161
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview

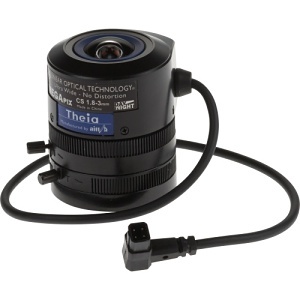

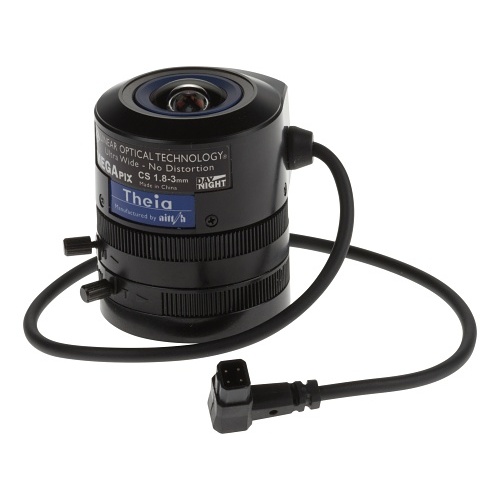

Ultra wide varifocal lens for megapixel cameras
This lens provides an ultra wide field of view without distortion. It is a varifocal lens allowing the user to optimize the field of view from wide angle to ultra wide. It is a high quality lens designed to allow the installer to take full advantage of the high resolution of HDTV and multi megapixel cameras. The lens incorporates patented Linear Optical Technology® which allows an ultra wide field of view without barrel distortion. The rectilinear design allows increased resolution at the edges of the image thus increasing the probability of detection. The focal length is 1.8 - 3.0 mm and the lens fast aperture (F-number) is 1.8.
Main Features
- A high-performance lens for professional photographers
- Designed to be used with surveillance camera
General Information
Specifications
-
ADI Part Number Z4-5503161 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 5503-161 Product Name ACC LENS CS VARIF 1.8-3MM DC-IRIS Product Type Lenses
-
Iris Type DC-iris Lens Mount Type CS Lens Type Varifocal Maximum Aperture f/1.8 Minimum Focal Length 1.8mm Optical Zoom 1.7x
-
NDAA Compliant Yes
-
Focal Length 1.8-3mm Maximum Focal Length 3 mm
-
ADI Part Number Replaces Z4-5502451 Model Number Replaces 5502-451
-
Application/Usage Surveillance Camera Color White
-
Brand Compatibility AXIS Compatibility Axis Surveillance Cameras: - P1353/-E
- P1354/-E
- P1355/-E
- P1357/-E
- Q1602/-E
- Q1604/-E
Country of Origin ID Model Compatibility P1353/-E, P1354/-E, P1355/-E, P1357/-E, Q1602/-E, Q1604/-E
