AXIS T98A16-VE Media Converter Cabinet for Fixed Cameras, 120VAC
T98A16-VE|Z4-5505361
AXIS T98A16-VE Media Converter Cabinet for Fixed Cameras, 120VAC
T98A16-VE|Z4-5505361
Key Features
- Pre-mounted accessories
- Vandal resistant
Key Features
- Pre-mounted accessories
- Vandal resistant
Axis Communications
AXIS T98A16-VE Media Converter Cabinet for Fixed Cameras, 120VAC
T98A16-VE | Z4-5505361
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
- Pre-mounted accessories
- Vandal resistant
- Compatible with fixed cameras
- Directly compatible with Axis DC-powered cameras
Custom designed for Axis cameras

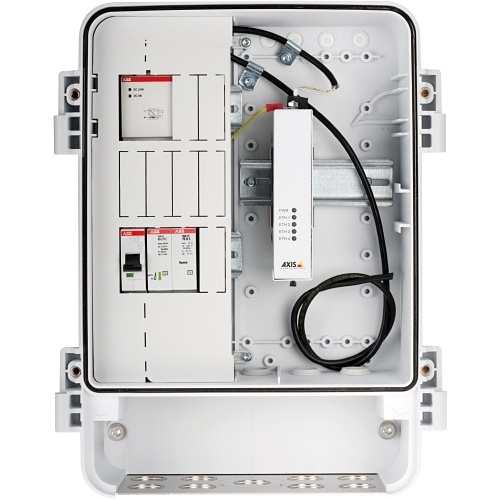

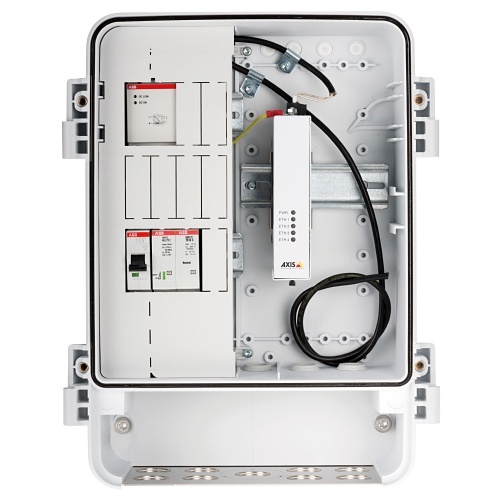

Pre-assembled cabinet including AXIS T8604 Media Converter Switch, surge protection and Power Supply DIN CP-D 12/2.1 25 W. AXIS Door Switch A is available as optional accessory. This cabinet is directly compatible with cameras supporting 12 V DC in combination with AXIS T91E61 Wall Mount and pendant kit, or cameras mounted in AXIS T93F10 Outdoor Housing. Non DC-powered cameras will require a PoE midspan.
Main Features
- Pre-mounted accessories
- Vandal resistant
General Information
Name: AXIS T98A16-VE Media Converter Cabinet for Fixed Cameras, 120VAC
Category: Axis Communications, Video Surveillance, Data Comm & Networking, Networking Devices, Media Converters & Transceivers, Media Converters, Media Converters
UPC Code: 7331021043411
Country of Origin: Estonia. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-5505361 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 5505-361 Product Line T Product Model T98A16-VE Product Name AXIS T98A16-VE MEDIA CONV CAB 120V Product Series T98 Product Type Cabinets
-
NDAA Compliant Yes TAA Compliant Yes
-
Operating Temperature (T-T) -40-65°C
-
Application/Usage Camera, Outdoor
-
Power Source AC, DC
-
Limited Warranty 5-Year
-
Certifications EN 50121-4, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, RCM AS/NZS CISPR 22 Class A, VCCI Class A Compatibility - AXIS T93F10 Outdoor Housing
- T94Q01A
- T91E61
- M1135-E
- M1137-E
- P1375-E
- P1377-LE
- P1378-LE
Country of Origin EE Environmental Certification IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X Indoor/Outdoor Outdoor
