TiniFiber TF96-OS2-PLO/Y 96-Strand Singlemode OS2 9/125 Micro Armor Steel Braid Fiber Optic Cable, Plenum, Indoor / Outdoor, Yellow
TF96-OS2-PLO/Y
|ZM-TF96OS2PL
Shop All TiniFiber
TiniFiber TF96-OS2-PLO/Y 96-Strand Singlemode OS2 9/125 Micro Armor Steel Braid Fiber Optic Cable, Plenum, Indoor / Outdoor, Yellow
TF96-OS2-PLO/Y | ZM-TF96OS2PL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

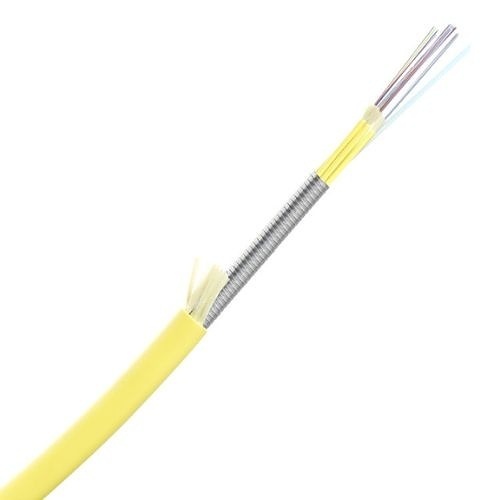

96 Strand, 4x24f, TiniFiber® Micro Armor™ plus Steel Braid, Singlemode OS2 9/125, Plenum-UV, Yellow, Plenum, Indoor Outdoor Premise, Duct, Conduits, and Patch.
Main Features
- Micro Armor Fiber
- Singlemode OS2
- Loose Tube
- Plenum Indoor/Outdoor
- 96 Strand, 4x24f
- Indoor & Outdoor
- Steel Braid
- Water Block
- Applications and uses include: Indoor Outdoor Premise, Duct, Conduits, and Patch
General Information
Name: TiniFiber TF96-OS2-PLO/Y 96-Strand Singlemode OS2 9/125 Micro Armor Steel Braid Fiber Optic Cable, Plenum, Indoor / Outdoor, Yellow
Category: TiniFiber, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number ZM-TF96OS2PL Brand Name TiniFiber Manufacturer TiniFiber Manufacturer Part Number TF96-OS2-PLO/Y Product Line Micro Armor Fiber Product Model TF96-OS2-PLO/Y Product Name 96 Fiber OS2 250um Plenum Indoor/Outdoor Yellow Armored Fiber Optic Cable Product Type Cable
Application/Usage Conduits, Duct, Indoor, Outdoor Premise, Patch Armored Yes Cable Rating Plenum Fiber Category OS2 Fiber Count 96 Fiber Optic Mode Single-mode Jacket Type Plenum Material Plenum
Operating Temperature (T-T) 5-140°F Storage Temperature (T-T) 5-140°F
Data Transfer Rate 100GB
Cable Length 250mm Color Yellow
Certifications & Standards ICEA-S-104-696, Telcordia GR-20, TIA-568.3 Compatibility All standard connectors Environmental Certification UL Features All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial and Industrial projects, Cables are up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor(AIA), Crush and, Lightest and smallest armor makes routing and installation faster and easier, Provides the strongest armor with maximum bend radius and designed for all indoor and outdoor conditions, The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility Indoor/Outdoor Indoor, Outdoor
