Image of ZX-EVOSKLZ1

Evolution EVOSKLZ1 Evolution EVOSKILLZ Audio Embedder

EVOSKLZ1|ZX-EVOSKLZ1

Evolution EVOSKLZ1 Evolution EVOSKILLZ Audio Embedder

EVOSKLZ1|ZX-EVOSKLZ1
Key Features
What's Included
  • Automatically embeds audio from a secondary analog audio source onto an HDMI video signal
  • Switches back to HDMI Input audio once analog audio signal is not present
  • Adjustable gain for increased volume and stabilizing audio switching
Key Features
What's Included
  • Automatically embeds audio from a secondary analog audio source onto an HDMI video signal
  • Switches back to HDMI Input audio once analog audio signal is not present
  • Adjustable gain for increased volume and stabilizing audio switching

Sign In for Dealer Pricing

Become an ADI Customer
Legrand
Key Features
What's Included
  • Automatically embeds audio from a secondary analog audio source onto an HDMI video signal
  • Switches back to HDMI Input audio once analog audio signal is not present
  • Adjustable gain for increased volume and stabilizing audio switching
Evolution by Vanco

Evolution EVOSKLZ1 Evolution EVOSKILLZ Audio Embedder

EVOSKLZ1 | ZX-EVOSKLZ1

Please sign in to view pricing and availability and to add to cart.

Accessories

Power Strips
NULL
ADI # 0E-RCKMTSURG
MODEL # 0E-RCKMTSURG
Sign In for Dealer Pricing
Power Strips
Image of 0E-SRGE6F2PK
ADI # 0E-SRGE6F2PK
MODEL # 0E-SRGE6F2PK
Sign In for Dealer Pricing
Power Strips
Image of 0E-SRGESWVL6
ADI # 0E-SRGESWVL6
MODEL # 0E-SRGESWVL6
Sign In for Dealer Pricing
Power Strips
Image of 0E-SRGEWDPLG
ADI # 0E-SRGEWDPLG
MODEL # 0E-SRGEWDPLG
Sign In for Dealer Pricing
HDMI Splitters
Vanco S-VGA 1×4 Splitter with Audio
ADI # ZX-280444
MODEL # 280444
Sign In for Dealer Pricing
Power Adapters
Vanco Analog Audio over Cat5e/Cat6 Cable Extender
ADI # ZX-280535
MODEL # 280535
Sign In for Dealer Pricing
HDMI Extenders
Image of ZX-EVOIPRX1
ADI # ZX-EVOIPRX1
MODEL # EVOIPRX1
Sign In for Dealer Pricing
Pro HDMI Extenders
Image of ZX-EVOIPTX1
ADI # ZX-EVOIPTX1
MODEL # EVOIPTX1
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

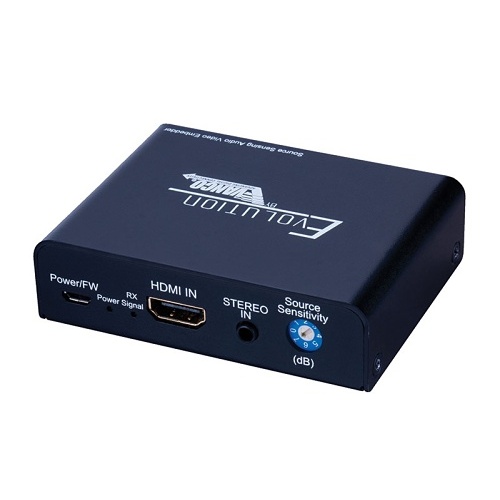

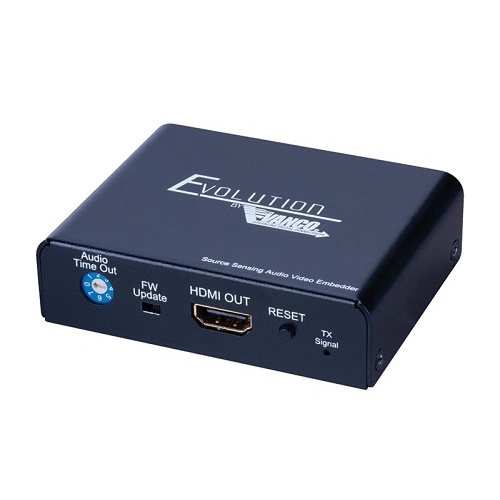

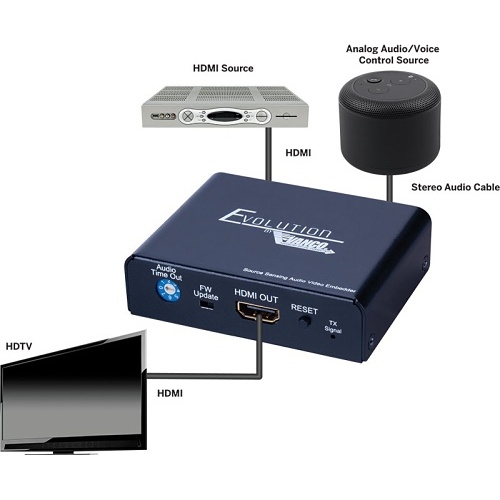

The Evolution by Vanco EVOSKILLZ is a first of its kind. This patent pending technology gives the ability to pass audio and video from an HDMI source and have the audio switched to a secondary audio source automatically via 3.5mm input. EVOSKILLZ comes equipped with an HDMI 2.0a input for audio and video, a 3.5mm stereo port to provide audio from a secondary source, and an HDMI 2.0a output which can pass the audio and video coming from the HDMI input, or embed the audio coming from the secondary audio source. Capable of passing 4K 60Hz with 4:4:4 chroma, with HDR10 and Dolby Vision compatibility, and can also pass through PCM, Dolby, and DTS audio. The micro-USB port can be used to power the unit or provide any needed future firmware updates. There are also 2 dials on the unit which allows the source sensitivity (gain) and audio time out to be manually adjusted. For embedding any analog audio over HDMI video, the EVOSKILLZ is a great and unique solution!

Main Features

  • Automatically embeds audio from a secondary analog audio source onto an HDMI video signal
  • Switches back to HDMI Input audio once analog audio signal is not present
  • Adjustable gain for increased volume and stabilizing audio switching
  • Supports 4K 60Hz, 4:4:4 chroma sampling with HDR10 and Dolby Vision video
  • HDCP 2.2/1.4 Compliant
  • Supports CEC Bypass
  • HDMI Passthrough of PCM, DTS, and Dolby audio formats
  • USB port for power, firmware updates, and software setup
  • Dimensions: 5" W x 2.6" H x 1" D
  • Patent No. US 10,848,818 B2

General Information

Name: Evolution EVOSKLZ1 Evolution EVOSKILLZ Audio Embedder
Category: Evolution by Vanco, Pro AV, Commercial Audio, Pro Audio Mixers
UPC Code: 741835112635
Country of Origin: . Country of origin is subject to change.
