Audio Technica ATW-3212/C510EE1 3000 Series Frequency-Agile True Diversity UHF Wireless Systems, 530-589.975 MHz
Audio Technica ATW-3212/C510EE1 3000 Series Frequency-Agile True Diversity UHF Wireless Systems, 530-589.975 MHz
Audio Technica ATW-3212/C510EE1 3000 Series Frequency-Agile True Diversity UHF Wireless Systems, 530-589.975 MHz
ATW-3212/C510Â |Â ME-ATW3212C0
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands - DE2 (470-530 MHz) and EE1 (530-590 MHz) - that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.

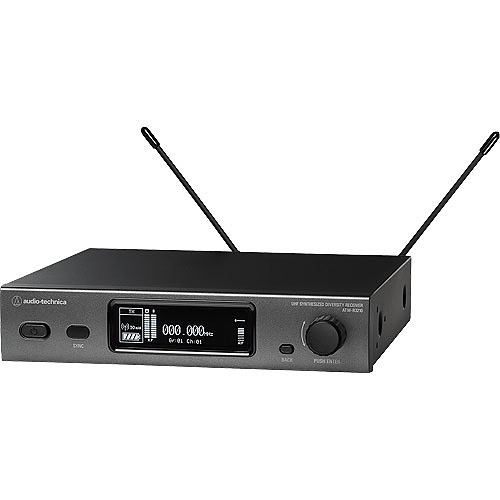

Available system configurations feature an ATW-R3210 receiver along with an ATW-T3201 body-pack or ATW-T3202 handheld transmitter. The ATW-T3201 is equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector for secure connection to A-T's cH-style lavalier and headworn microphones, or cables. The ATW-T3202 comes with either an ATW-C510 dynamic or ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of four additional A-T capsules, plus other compatible capsules. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries.
Main Features
- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
- Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
- New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
General Information
Specifications
-
ADI Part Number ME-ATW3212C0 Brand Name Audio Technica Manufacturer Audio-Technica U.S., Inc Manufacturer Part Number ATW-3212/C510EE1 Product Model ATW-3212/C510 Product Name 3000 ATW-3212/C510 Wireless Microphone System Product Series 3000 Product Type Wireless Microphone System Weight (Approximate) (g) 1099.961, 328.854 Â
-
Maximum Frequency Response (Hz) 15500 Maximum Operating Frequency (Hz) 589750000 Minimum Frequency Response (Hz) 31 Minimum Operating Frequency (Hz) 530000000 Operating Range 328.08 ft Operating Range (mm) 100000 Â
-
Maximum Frequency Response 15.50 kHz Minimum Frequency Response 31 Hz Signal to Noise Ratio (SNR) 65 dB Signal to Noise Ratio (SNR) (dB) 65 Â
-
Battery Chemistry Alkaline Battery Run Time 9.50 Hour Battery Size Supported AA Number of Batteries Supported 2 Â
-
BNC Yes XLR Yes Â
-
Microphone Technology Condenser Â
-
Maximum Operating Frequency 589.975 MHz Minimum Operating Frequency 530 MHz Â
-
Depth 7.5" Height 1.7" Product Color Beige Weight (Approximate) 2.42 lb|11.60 oz Width 8.3" Width (mm) 210.058 Â
-
Input Voltage 120V AC, 230V AC Â
-
Package Contents - ATW-R3210 Receiver
- ATW-T3202 handheld transmitter
- ATW-C510 Cardioid Dynamic Microphone Capsule
- Two Flexible UHF Antennas
- Rack-mount Adapters
TAA Compliant No Â
