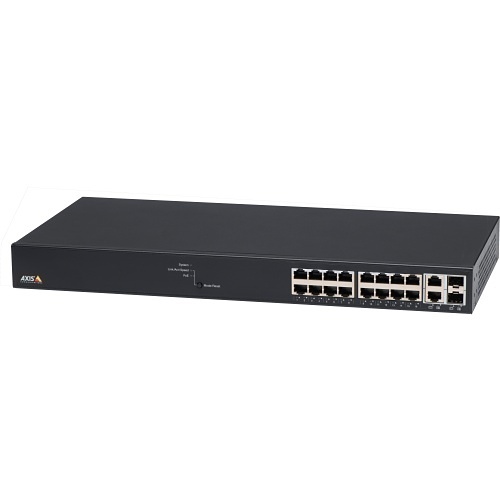

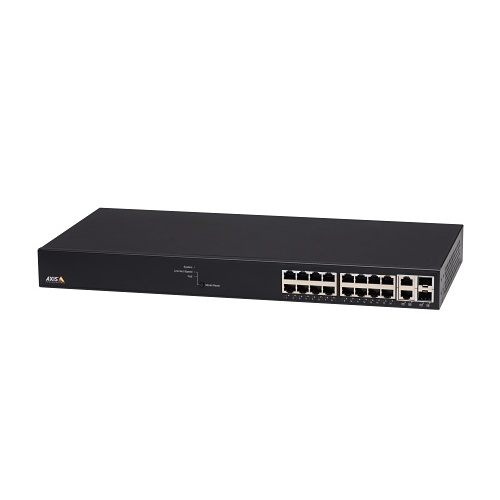

AXIS T8516 T85 Series 16-Port PoE+ Network Switch, Black
T8516|Z4-5801694
Total Number of Network Ports: 16
Axis Communications
AXIS T8516 T85 Series 16-Port PoE+ Network Switch, Black
T8516|Z4-5801694
Total Number of Network Ports: 16
Key Features
What's Included
- 2 SFP/RJ45 Combination Ports
- 30 W PoE per port, total 240 W
- Gigabit switch
Key Features
What's Included
- 2 SFP/RJ45 Combination Ports
- 30 W PoE per port, total 240 W
- Gigabit switch
.jpg)
Key Features
What's Included
- 2 SFP/RJ45 Combination Ports
- 30 W PoE per port, total 240 W
- Gigabit switch
Axis Communications
AXIS T8516 T85 Series 16-Port PoE+ Network Switch, Black
T8516 | Z4-5801694
Please sign in to view pricing and availability and to add to cart.
Recommended
02330-001 | Z4-02330001
02330-001 | Z4-02330001
Sign In for Dealer Pricing
02372-001 | Z4-02372001
02372-001 | Z4-02372001
Sign In for Dealer Pricing
02373-001 | Z4-02373001
02373-001 | Z4-02373001
Sign In for Dealer Pricing
02416-001 | Z4-02416001
02416-001 | Z4-02416001
Sign In for Dealer Pricing
02450-001 | Z4-02450001
02450-001 | Z4-02450001
Sign In for Dealer Pricing
Accessories
Video Decoders
ADI # Z4-0936001
MODEL # 0936-001
Axis Communications
0936-001|Z4-0936001
Sign In for Dealer Pricing
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WattBox
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
AXIS T8516 PoE+ Network Switch is an easy to install 16-port managed Gigabit switch - a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. AXIS T8516 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 16 PoE cameras.
Main Features
- 2 SFP/RJ45 Combination Ports
- 30 W PoE per port, total 240 W
- Gigabit switch
- Intuitive graphic topology for system overview
General Information
Name: AXIS T8516 T85 Series 16-Port PoE+ Network Switch, Black
Category: Axis Communications, Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code: 7331021055308
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-5801694 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 5801-694 Product Line T Product Model T8516 Product Name AXIS T8516 POE+ NETWORK SWITCH US Product Series T85 Product Type Network Switches Weight 6.61 lb
-
Media Type Supported Optical Fiber, Twisted Pair Network Switch Type Managed Power Consumption 30W
-
NDAA Compliant Yes TAA Compliant Yes
-
Operating Temperature (T-T) 32-122°F
-
Expansion Slot Type SFP Number of SFP Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot Yes
-
Modular Yes Total Number of Network Ports 16 Uplink Port No
-
Manageable Yes Security Features IEC/EN 60950-1|IEC/EN 62368-1|S-Mark|UL 60950-1
-
Network Technology 10/100/1000Base-T, 1000Base-X
-
Ethernet Technology Gigabit Ethernet Layer Supported 2
-
Color Black Depth 8.3" Height 1.7" Material Metal Width 17.4"
-
Frequency 50 Hz|60 Hz Input Voltage 100-240V AC Maximum Power Consumption 45W PoE Budget 30W Power Source Power Supply
-
Mount Type Desktop Mount
-
Limited Warranty 3-Year
-
Certifications EN 55024, EN 55032 Class A, EN 55035, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Country of Origin TW Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents - T8516 PoE+ Network Switch
- Installation Guide
- Power Cord
- 19" Ear Rack Kit
- 4 x Rubber feet
- 2 x SFP dust cover
