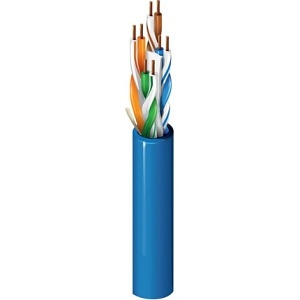

Belden 2413 D15U1000 Category 6+ Enhanced Premise Horizontal Cable 350MHz, 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest PVC-LS Jacket, Blue, UnReel, 1,000'
2413 D15U1000
|7B-2413D15U1
Color: Blue
Cable Length: 1000'
Shielding: No
Shop all Belden
Belden 2413 D15U1000 Category 6+ Enhanced Premise Horizontal Cable 350MHz, 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest PVC-LS Jacket, Blue, UnReel, 1,000'
2413 D15U1000 | 7B-2413D15U1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket
Main Features
- Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE , PoE , PoE Solid Stranding Conductor Material: Bare Copper
- Number of Pairs: 4
- Size 23 AWG
- Stranding: Solid
- Material: BC - Bare Copper (High Conductivity)
- Insulation Material: PO FEP - Polyolefin Fluorinated Ethylene Propylene
- Plenum
- Offers a reliable network connectivity
- Features Category 6+ cable type for your convenience and desired usability
- PoE feature for better reliability and ensure maximum productivity
General Information
Name: Belden 2413 D15U1000 Category 6+ Enhanced Premise Horizontal Cable 350MHz, 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest PVC-LS Jacket, Blue, UnReel, 1,000'
Category: Belden, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 612825061793
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number 7B-2413D15U1 Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number 2413D15U1000 Product Name Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMP Product Type Network Cable
American Wire Gauge 23AWG Application/Usage Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE, PoE+, PoE++, Premise Horizontal Cable Cable Rating Plenum Cable Type Category 6+ Conductor Count 4 Conductor Material Bare Copper Device Supported Network Device Jacket Material PVC-LS Jacket Type CMP, Plenum Material PVC Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
Operating Temperature (T-T) -20-75°C
Data Transfer Rate 1 Gbit/s
Cable Length 1000' Color Blue Insulation Material FEP, Polyolefin
Length 1000'
Environmental Certification China RoHS 2, EU RoHS, EU WEEE, REACH, RoHS 2 Environmentally Friendly Yes Features Attenuation to Crosstalk Ratio (ACR), Bendable, Minimized Near-End Crosstalk (NEXT), PoE, PoE+, PoE++, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT), Stranded Indoor/Outdoor Indoor
