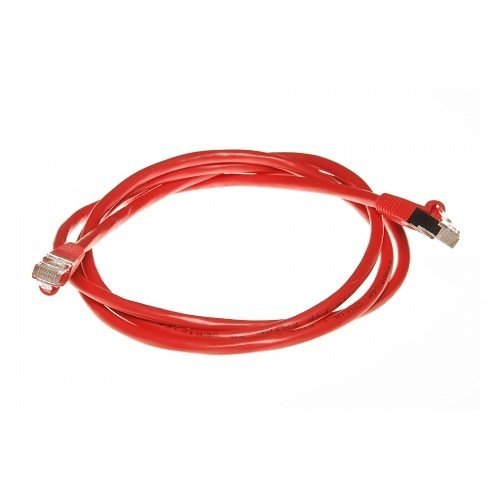

Belden C602102007 C6 Series CAT6 Plus Patch Cable, 24/4 Solid BC, Bonded Pair, T568A/B-T568A/B, CMP, 7' (2.13m), Red
C602102007
|7B-C60210207
Shop All Belden
Belden C602102007 C6 Series CAT6 Plus Patch Cable, 24/4 Solid BC, Bonded Pair, T568A/B-T568A/B, CMP, 7' (2.13m), Red
C602102007 | 7B-C60210207
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Belden C602102007 C6 Series CAT6 Plus Patch Cable is a reliable 7-foot (2.13m) solution designed for high-performance networking. Featuring a 24/4 solid bare copper conductor with bonded pairs, this cable ensures excellent signal quality with a maximum contact resistance of just 20mOhm. It boasts a dielectric strength of 1,000 V RMS at 60 Hz for 1 minute and a current rating of 1.500 A, complemented by an insulation resistance of at least 500 M-Ohms. Certified with UL plenum rating and c(UL)us listing, it meets Category 6 standards, including TIA 568-C.2, ISO/IEC 11801:2002 Ed.2 Amendment 2, FCC Part 68, Subpart F, and IEC 60603-7 compliance. This dependable cable supports both T568A and T568B wiring schemes to suit your setup needs. Elevate your network performance with this top-tier patch cable, get yours today!
Main Features
- Dielectric strength 1,000 V RMS at 60 Hz for 1 minute
- Current rating 1.500 A
- Insulation resistance of 500 M-Ohm minimum
- Max contact resistance of 20mOhm
- Mated Connection
- UL Rating plenum
- Data category 6
- c(UL)us Listed
- Category 6, TIA 568-C.2, Class E - ISO/IEC 11801:2002 Ed.2 Amendment 2
- FCC Part 68, Subpart F, IEC 60603-7
General Information
Name: Belden C602102007 C6 Series CAT6 Plus Patch Cable, 24/4 Solid BC, Bonded Pair, T568A/B-T568A/B, CMP, 7' (2.13m), Red
Category: Belden, Wire & Cable, Network Patch Cords, Category 6 Patch Cords
UPC Code: 611589518420
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-C60210207 Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number C602102007 Product Name Cat.6+ Patch Network Cable Product Type Network Cable
American Wire Gauge 24AWG Boot Type Snagless Cable Rating Plenum Cable Type Category 6+ Device Supported Network Device Solid or Stranded Solid
Cable Length 7' Color Red
