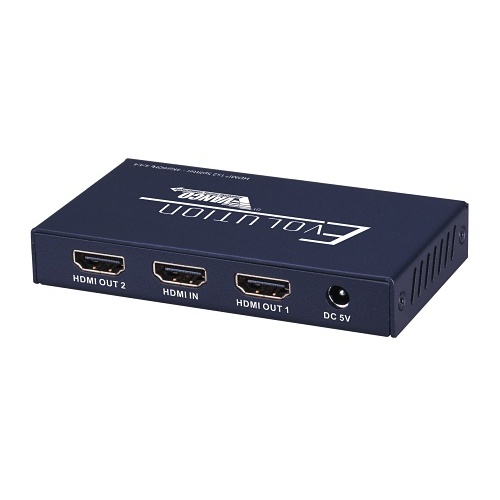

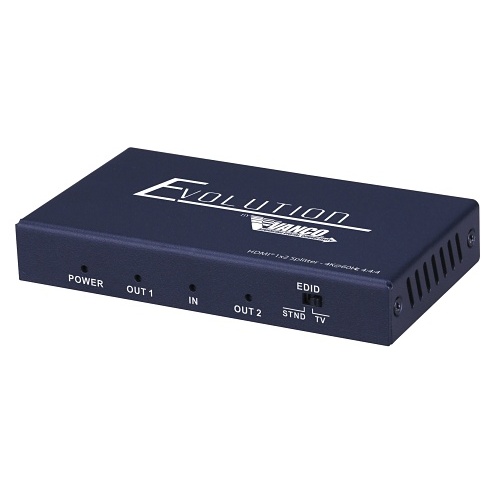

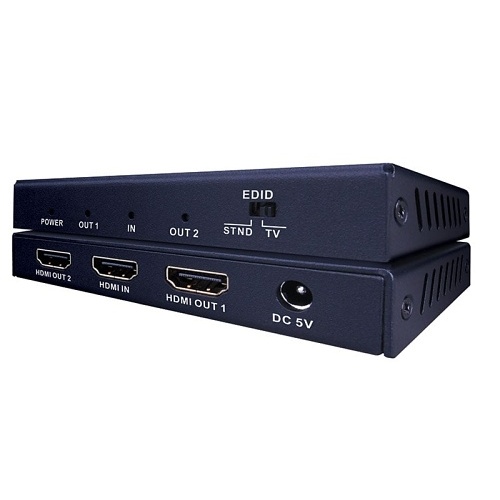

Evolution EVSP4K12 Premium 4K HMDI 1x2 Splitter (Replaces 280702)
EVSP4K12
|ZX-EVSP4K12
Shop all Evolution by Vanco
Evolution EVSP4K12 Premium 4K HMDI 1x2 Splitter (Replaces 280702)
EVSP4K12 | ZX-EVSP4K12
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Evolution by Vanco EVSP4K12, EVSP4K14 and EVSP4K18 with HDCP 2.2, 4K/60Hz, and 4:4:4 chroma capability, are the most up to date HDMI splitters that are compliant with HDCP 2.2 displays and sources. Also features EDID management, with different modes to ensure compatibility with source and display combinations. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio for advanced audio setups. Take any 4K source and split the signal to multiple 4K displays to ensure the highest quality possible with the Evolution 4K HDMI Splitters!
Main Features

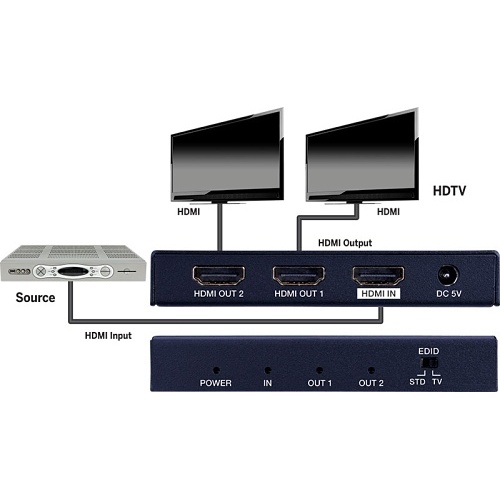

- Transmits audio and video from a single source to 2 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
- Supports video formats up to 4K2K 60Hz with 12bit YCBCR 4:4:4 and HDR
- 3D Frame sequential video format up to 1080p 60
- Supports high resolution VESA mode video format up to QSXGA 2560x2048 60Hz
- Compliant with HDCP 2.2 sources and backwards compatible with older versions of HDCP
- Dynamic and Manual EDID management modes to ensure compatibility during installation
- Supports LPCM 7.1CH- Dolby TrueHD- and DTS-HD Master Audio
- Supports Hot-plug
- High bandwidth: 18 Gbps
- Features status indicator for connection & input HDCP compliance
General Information
Name: Evolution EVSP4K12 Premium 4K HMDI 1x2 Splitter (Replaces 280702)
Category: Evolution by Vanco, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Splitters, Pro HDMI Splitters
UPC Code: 741835105941
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number ZX-EVSP4K12 Brand Name Evolution by Vanco Manufacturer Vanco International, Inc Manufacturer Part Number EVSP4K12 Product Line Evolution Product Model EVSP4K12 Product Name Evolution Premium 4K HDMI 1x2 Splitter Product Type HDMI Splitter
Maximum Video Resolution 4096 x 2160
Number of HDMI Inputs 1 Number of HDMI Outputs 2
ADI Part Number Replaces ZX-280702 Model Number Replaces 280702
Color Black Depth 2.3" Height 7" Weight 0.6lb Width 4"
Input Voltage 5V DC
Length 3.88"
Limited Warranty 2-Year
Package Contents - Evolution Premium 4K HDMI 1x2 Splitter
- 5V DC Power Supply
- Product Manual
