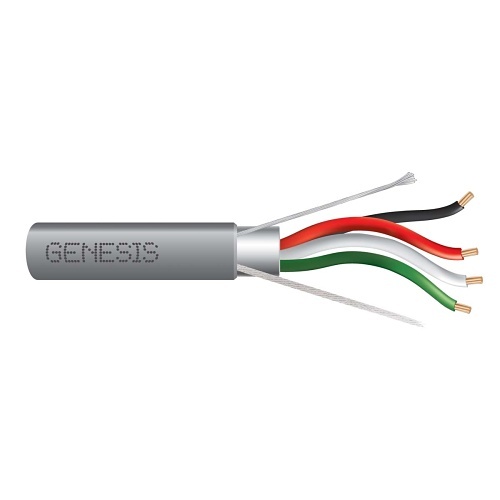

Genesis 22223909 16/4 Stranded Shielded Cable, Riser, CMR, FT4, 50' (15.24 m) x 5 Coils, Gray
22223909
|WG-22223909
Color: Gray
Cable Length: 50'
Package Type: Coil
Number of Conductors: 4
American Wire Gauge: 16AWG
Shop all Genesis
Genesis 22223909 16/4 Stranded Shielded Cable, Riser, CMR, FT4, 50' (15.24 m) x 5 Coils, Gray
22223909 | WG-22223909
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 22223909 16/4 Stranded Shielded Cable, Riser, CMR, FT4, 50' (15.24 m) x 5 Coils, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Shielded Cables
UPC Code: 194160006801
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-22223909 Brand Name Genesis Manufacturer Part Number 22223909 Packaged Quantity 5 Product Model 22223909
American Wire Gauge 16AWG Cable Rating Riser Jacket Material PVC Number of Conductors 4 Shielding Yes Solid or Stranded Stranded
ADI Part Number Replaces WG-12223909 Model Number Replaces 12223909
Cable Length 50' Color Gray Package Type Coil
Country of Origin US
