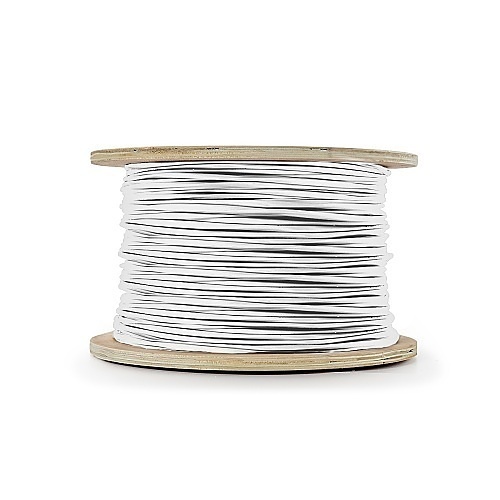

Genesis 31231012 14/2 Stranded Unshielded Cable, Plenum, CL3P, FT6, 1000' (304.8 m) Reel, Natural
31231012
|WG-31231012
Color: Clear
Cable Length: 1000'
Package Type: Reel/Spool
Number of Conductors: 2
American Wire Gauge: 14AWG
Shop All Genesis
Genesis 31231012 14/2 Stranded Unshielded Cable, Plenum, CL3P, FT6, 1000' (304.8 m) Reel, Natural
31231012 | WG-31231012
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 31231012 14/2 Stranded Unshielded Cable, Plenum, CL3P, FT6, 1000' (304.8 m) Reel, Natural
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Unshielded Cables
UPC Code: 619172015752
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-31231012 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 31231012 Packaged Quantity 1 Product Model 31231012 Product Name 31231012 Control Cable Product Type Security & Control Cables
American Wire Gauge 14AWG Armored No Cable Rating Plenum Conductor Count 1 Conductor Material Bare Copper Core/Cladding Diameter 14/2 Jacket Material LS-PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
TAA Compliant Yes
ADI Part Number Replaces RM-725140L1W, WG-31235012 Model Number Replaces 31235012, 725140L1W
Cable Length 1000' Color Clear Insulation Material LS-PVC Package Type Reel/Spool Weight 35.40 lb
Limited Warranty 1-Year
Country of Origin US Environmental Certification RoHS Indoor/Outdoor Indoor
