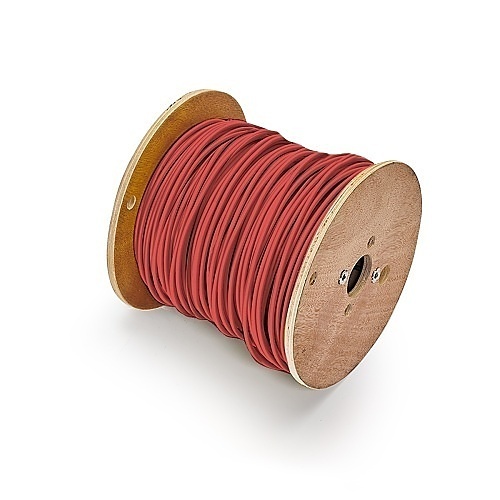

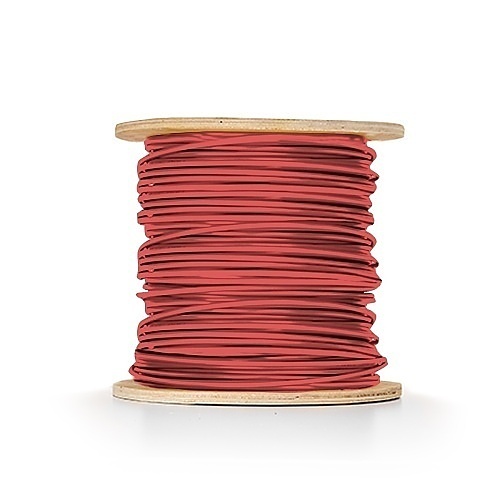

Genesis 45061004 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
45061004|WG-45061004
Color: Red
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 18AWG
Genesis 45061004 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
45061004|WG-45061004
Color: Red
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 18AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Genesis
Genesis 45061004 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
45061004 | WG-45061004
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 45061004 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 619172016469
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-45061004 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 45061004 Packaged Quantity 1 Product Model 45061004 Product Name 18 AWG 2C SOL Plenum, Red, 1000 ft. Reel Product Type Fire Alarm Cable Weight 15.50 lb
-
American Wire Gauge 18AWG Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 18/2 Device Supported Fire Alarm Impedance 58 ohms Jacket Material LS PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid
-
TAA Compliant Yes
-
Cable Length 1000' Color Red Insulation Material LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Indoor/Outdoor Indoor
