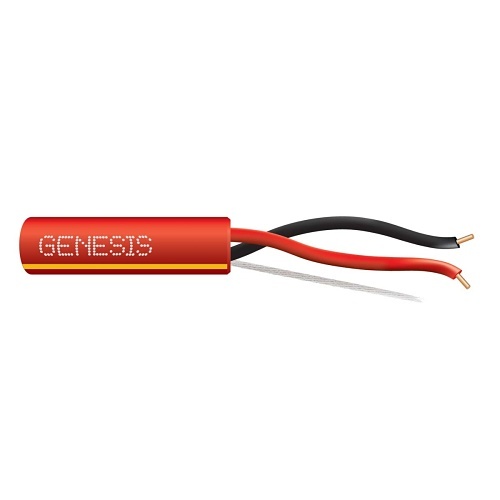

Genesis 4506104Y 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
4506104Y|WG-4506104Y
Color: Red with Yellow Stripe
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 18AWG
Genesis 4506104Y 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
4506104Y|WG-4506104Y
Color: Red with Yellow Stripe
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 18AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Genesis
Genesis 4506104Y 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
4506104Y | WG-4506104Y
Please sign in to view pricing and availability and to add to cart.
Recommended
DTK-120HW | DK-120HW
DTK-120HWLOK | DK-120HWLOK
DTK-120HWLOK | DK-120HWLOK
Sign In for Dealer Pricing
ELOCK-FA | O6-ELOCKFA
ELOCK-FA | O6-ELOCKFA
Sign In for Dealer Pricing
43011001 | WG-43011001
43011001 | WG-43011001
Sign In for Dealer Pricing
46021004 | WG-46021004
46021004 | WG-46021004
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 4506104Y 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 886618237652
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-4506104Y Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 4506104Y Packaged Quantity 1 Product Model 4506104Y Product Name 18 AWG 2C SOL Plenum, Red W Yellow Stripe, 1000 ft. Reel Product Type Fire Alarm Cable Weight 15.50 lb
-
American Wire Gauge 18AWG Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 18/2 Device Supported Fire Alarm Jacket Material LS PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid
-
TAA Compliant Yes
-
ADI Part Number Replaces WG-4306114Y Model Number Replaces 4306114Y
-
Cable Length 1000' Color Red with Yellow Stripe Insulation Material LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Indoor/Outdoor Indoor
