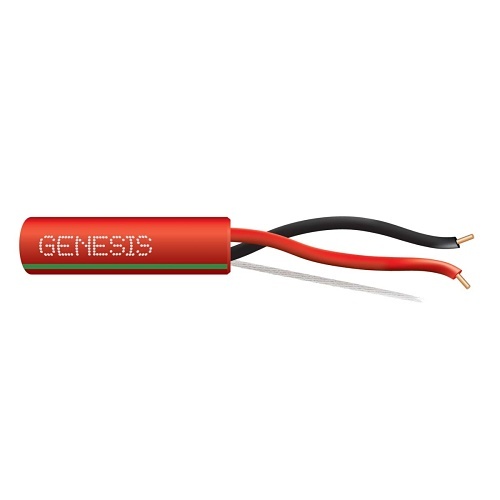

Genesis 4511104G 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Green Stripe
4511104G
|WG-4511104G
American Wire Gauge: 16AWG
Cable Length: 1000'
Color: Red with Green Stripe
Number of Conductors: 2
Package Type: Reel/Spool
Shop All Genesis
Genesis 4511104G 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Green Stripe
4511104G | WG-4511104G
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 4511104G 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Green Stripe
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 886618268632
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-4511104G Brand Name Genesis Country of Origin US Manufacturer Genesis Cable Manufacturer Part Number 4511104G Package Type Reel/Spool Packaged Quantity 1 Product Model 4511104G Product Name Plenum Rated Power Limited Fire Alarm Cable Product Type Fire Alarm Cables
American Wire Gauge 16AWG Armored No Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Core/Cladding Diameter 16/2 Jacket Type Standard Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded solid
TAA Compliant Yes
Cable Length 1000.00' Color Red with Green Stripe Insulation Material LS-PVC Jacket Material LS-PVC
Limited Warranty 1-Year
Environmental Certification RoHS Indoor/Outdoor Indoor
