Genesis
Genesis 4511104Y 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
4511104Y|WG-4511104Y
Color: Red with Yellow Stripe
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 16AWG
Genesis
Genesis 4511104Y 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
4511104Y|WG-4511104Y
Color: Red with Yellow Stripe
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 16AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
.jpg)
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Genesis
Genesis 4511104Y 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
4511104Y | WG-4511104Y
Please sign in to view pricing and availability and to add to cart.
Recommended
0E-BR12525 | 0E-BR12525
0E-BR12525 | 0E-BR12525
Sign In for Dealer Pricing
DTK-120HW | DK-120HW
DTK-120HWLOK | DK-120HWLOK
DTK-120HWLOK | DK-120HWLOK
Sign In for Dealer Pricing
45211004 | WG-45211004
45211004 | WG-45211004
Sign In for Dealer Pricing
46021004 | WG-46021004
46021004 | WG-46021004
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 4511104Y 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 886618237690
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-4511104Y Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 4511104Y Packaged Quantity 1 Product Model 4511104Y Product Name 4511104Y - 16 AWG 2C Sol Plenum, Red w Yellow Stripe, 1000 ft. Reel Product Type Fire Alarm Cable Weight 23.10 lb
-
American Wire Gauge 16AWG Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 16/2 Device Supported Fire Alarm Jacket Material LS PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid
-
TAA Compliant Yes
-
Cable Length 1000' Color Red with Yellow Stripe Insulation Material LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor
Product Documents and Resources
More To Consider

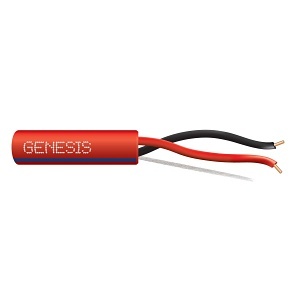

ADI # WG-4511104B
