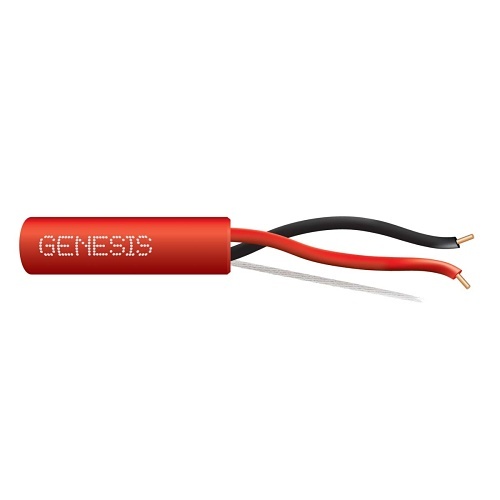

Genesis 45111104 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Pull Box, Red
45111104|WG-45111104
Color: Red
Cable Length: 1000'
Package Type: Pull Box
Number of Conductors: 2
American Wire Gauge: 16AWG
Genesis 45111104 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Pull Box, Red
45111104|WG-45111104
Color: Red
Cable Length: 1000'
Package Type: Pull Box
Number of Conductors: 2
American Wire Gauge: 16AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Genesis
Genesis 45111104 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Pull Box, Red
45111104 | WG-45111104
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 45111104 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Pull Box, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 619172016568
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-45111104 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 45111104 Packaged Quantity 1 Product Model 45111104 Product Name 45111104 - 16 AWG 2C Sol Plenum, Red, 1000 ft. Pull Box Product Type Fire Alarm Cable Weight 23.10 lb
-
American Wire Gauge 16AWG Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 16/2 Device Supported Fire Alarm Jacket Material LS PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid
-
TAA Compliant Yes
-
ADI Part Number Replaces WG-4511104P Model Number Replaces 4511104P
-
Cable Length 1000' Color Red Insulation Material LS-PVC Material PVC Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor
