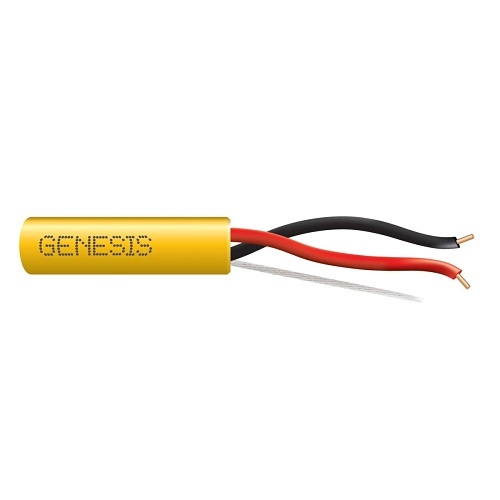

Genesis 45131002 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Yellow
45131002|WG-45131002
Color: Yellow
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 14AWG
Genesis 45131002 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Yellow
45131002|WG-45131002
Color: Yellow
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 14AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Genesis
Genesis 45131002 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Yellow
45131002 | WG-45131002
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 45131002 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Yellow
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 619172069731
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-45131002 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 45131002 Packaged Quantity 1 Product Model 45131002 Product Name 45131002 - 14 AWG 2C Sol Plenum, Yellow, 1000 ft. Reel Product Type Fire Alarm Cable Weight 32.70 lb
-
American Wire Gauge 14AWG Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 14/2 Device Supported Fire Alarm Impedance 63 ohms Jacket Material LS PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid
-
TAA Compliant Yes
-
Cable Length 1000' Color Yellow Insulation Material LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor
Product Documents and Resources
More To Consider

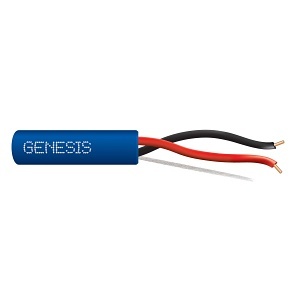

ADI # WG-45131006
