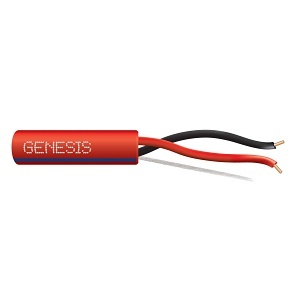

Genesis 4513104B 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Blue Stripe
4513104B
|WG-4513104B
Color: Red with Blue Stripe
Cable Length: 1000'
Package Type: Reel/Spool
Number of Conductors: 2
American Wire Gauge: 14AWG
Shop all Genesis
Genesis 4513104B 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Blue Stripe
4513104B | WG-4513104B
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 4513104B 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Blue Stripe
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 886618132025
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-4513104B Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 4513104B Product Model 4513104B Product Name Control Cable Product Type Fire Alarm Cables
American Wire Gauge 14AWG Armored No Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Jacket Material LS-PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid
TAA Compliant Yes
ADI Part Number Replaces WG-4306114B Model Number Replaces 4306114B
Cable Length 1000' Color Red with Blue Stripe Insulation Material LS-PVC Package Type Reel/Spool
Limited Warranty 1-Year
Country of Origin US Environmental Certification RoHS Indoor/Outdoor Indoor
