Genesis 45155004 12/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 500' (152.4m), Reel, Red
45155004|WG-45155004
Color: Red
Cable Length: 500'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 12AWG
Genesis 45155004 12/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 500' (152.4m), Reel, Red
45155004|WG-45155004
Color: Red
Cable Length: 500'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 12AWG
Genesis
Genesis 45155004 12/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 500' (152.4m), Reel, Red
45155004Â |Â WG-45155004
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

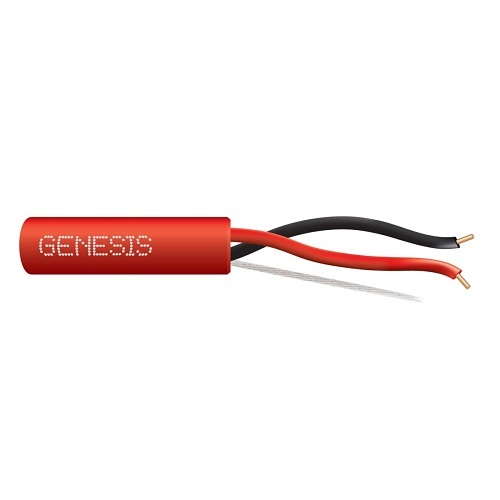

This Genesis® cable features 2 solid 12 AWG copper conductors and a plenum rating. Choose this cable for a dependable fire alarm system wiring solution.
Main Features
- Solid bare copper conductors
- Rated for plenum, riser, and general purpose indoor installation
- 500' (152.4 m) reel
- Red jacket
General Information
Name: Genesis 45155004 12/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 500' (152.4m), Reel, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 619172018555
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-45155004 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 45155004 Packaged Quantity 1 Product Model 45155004 Product Name 45155004 - 12 AWG 2C Sol Plenum, Red, 500 ft. Reel Product Type Fire Alarm Cable Weight (Approximate) (g) 13426.334 Â
-
American Wire Gauge 12AWG Cable Listing CL3P, FPLP, FT6 Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 12/2 Device Supported Fire Alarm Jacket Material LS PVC Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid Â
-
Cable Length 500' Cable Length (mm) 152400 Color Red Insulation Material LS-PVC Material Bare Copper Package Type Reel Weight (Approximate) 29.60 lb Â
-
Limited Warranty 3 Year; 3-for-1 Â
-
Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor TAA Compliant Yes Â
