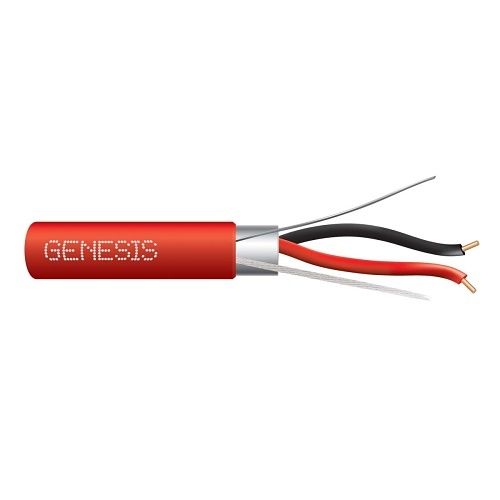

Genesis 46081004 14/2 Solid Shielded Plenum Fire Alarm Cable, FPLP, CL3P, FT6, 1000' (304.8m), Reel, Red
46081004|WG-46081004
Color: Red
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 14AWG
Genesis 46081004 14/2 Solid Shielded Plenum Fire Alarm Cable, FPLP, CL3P, FT6, 1000' (304.8m), Reel, Red
46081004|WG-46081004
Color: Red
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 14AWG
Genesis
Genesis 46081004 14/2 Solid Shielded Plenum Fire Alarm Cable, FPLP, CL3P, FT6, 1000' (304.8m), Reel, Red
46081004Â |Â WG-46081004
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This Genesis® cable features 2 solid 14 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable fire alarm system wiring solution.
Main Features
- Solid bare copper conductors
- Overall foil shield
- Rated for plenum, riser, and general purpose indoor installation
- 1000 ft. (304.8 m) reel
- Red jacket
General Information
Name: Genesis 46081004 14/2 Solid Shielded Plenum Fire Alarm Cable, FPLP, CL3P, FT6, 1000' (304.8m), Reel, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Shielded Cables
UPC Code: 619172016872
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-46081004 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 46081004 Packaged Quantity 1 Product Model 46081004 Product Name 46081004 - 14 AWG 2C Sol SHIELDED Plenum, Red, 1000 ft. Reel Product Type Fire Alarm Cable Weight (Approximate) (g) 17191.151 Â
-
American Wire Gauge 14AWG Cable Listing CL3P, FPLP, FT6 Cable Rating Plenum Conductor Count 2 Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 14/2 Device Supported Fire Alarm Impedance 33 ohms Jacket Material LS PVC Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Solid Â
-
Cable Length 1000' Cable Length (mm) 304800 Color Red Insulation Material LS-PVC Material Bare Copper Package Type Reel Weight (Approximate) 37.90 lb Â
-
Limited Warranty 3 Year; 3-for-1 Â
-
Environmental Certification RoHS Indoor/Outdoor Indoor TAA Compliant Yes Â
