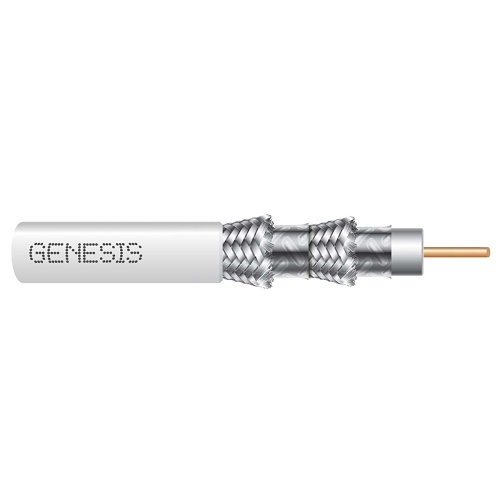

Genesis 50271101 RG6 BC 75 Ohm Coaxial with Quad-Shield Cable, General Purpose, CATV, 1000' (304.8 m) Pull Box, White
50271101|WG-50271101
Color: White
Cable Length: 1000'
Genesis 50271101 RG6 BC 75 Ohm Coaxial with Quad-Shield Cable, General Purpose, CATV, 1000' (304.8 m) Pull Box, White
50271101|WG-50271101
Color: White
Cable Length: 1000'
Key Features
- Solid Bare Copper center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Quad-shielded (Aluminum Foil + Aluminum Braid + Aluminum Foil + Braid)
Key Features
- Solid Bare Copper center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Quad-shielded (Aluminum Foil + Aluminum Braid + Aluminum Foil + Braid)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Solid Bare Copper center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Quad-shielded (Aluminum Foil + Aluminum Braid + Aluminum Foil + Braid)
Genesis
Genesis 50271101 RG6 BC 75 Ohm Coaxial with Quad-Shield Cable, General Purpose, CATV, 1000' (304.8 m) Pull Box, White
50271101 | WG-50271101
Please sign in to view pricing and availability and to add to cart.
Accessories
Coaxial Cable Connectors & Splitters
ADI # 0E-BNCCRIMPT
MODEL # 0E-BNCCRIMPT
0E-BNCCRIMPT|0E-BNCCRIMPT
Sign In for Dealer Pricing
Coaxial Cable Connectors & Splitters
ADI # 0E-BNCFF75TP
MODEL # 0E-BNCFF75TP
Sign In for Dealer Pricing
Coaxial Cable Connectors & Splitters
ADI # 0E-BNCT56PTP
MODEL # 0E-BNCT56PTP
0E-BNCT56PTP|0E-BNCT56PTP
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Genesis Broadband CATV Coaxial Cables deliver exceptional signal quality and protect from interference for satellite, cable, and broadcast TV applications.
Main Features
- Solid Bare Copper center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Quad-shielded (Aluminum Foil + Aluminum Braid + Aluminum Foil + Braid)
- PVC jacket
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 50271101 RG6 BC 75 Ohm Coaxial with Quad-Shield Cable, General Purpose, CATV, 1000' (304.8 m) Pull Box, White
Category: Genesis, Wire & Cable, Coaxial Cables
UPC Code: 781410777507
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-50271101 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 50271101 Packaged Quantity 1 Product Model 50271101 Product Name 50271101 Coaxial Antenna Cable Product Type Coaxial Cable
-
American Wire Gauge 18AWG Cable Rating General Purpose Cable Type RG-6 Conductor Count 1 Conductor Material Bare Copper Impedance 75 ohms Jacket Material PVC Jacket Type General Purpose Number of Conductors 1 Shielding Yes Solid or Stranded Solid
-
TAA Compliant No
-
Cable Length 1000' Color White Insulation Material PE Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin CN Environmental Certification RoHS Indoor/Outdoor Indoor
