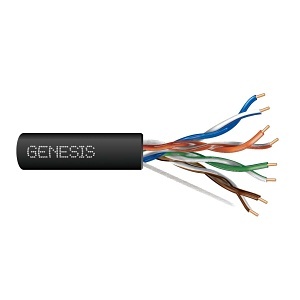

Genesis 50905008 24/4-Pair Cat 5e Unshielded (U/UTP) Water-Blocked Networking Cable, Direct Burial, 500' (152.4 m) Reel, Black
50905008
|WG-50905008
Shop all Genesis
Genesis 50905008 24/4-Pair Cat 5e Unshielded (U/UTP) Water-Blocked Networking Cable, Direct Burial, 500' (152.4 m) Reel, Black
50905008 | WG-50905008
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Category 5e Cables offer the ideal choice for basic voice and data networks. These direct burial rated and water-blocked cables safeguard devices from moisture damage and corrosion to ensure uninterrupted performance and longevity.
Main Features
- Bare Copper conductors for excellent signal transmission and low voltage drop
- Polyolefin insulation
- Polypropylene jacket
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 60 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 50905008 24/4-Pair Cat 5e Unshielded (U/UTP) Water-Blocked Networking Cable, Direct Burial, 500' (152.4 m) Reel, Black
Category: Genesis, Wire & Cable, Network Cables, Category 5e Network Cables
UPC Code: 619172066921
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number WG-50905008 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 50905008 Packaged Quantity 1 Product Model 50905008 Product Name 50905008 Cat.5e UTP Cable Product Type Network Cable
American Wire Gauge 24AWG Cable Rating Outdoor Cable Type Category 5e Conductor Count 4 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 24/4 Device Supported Network Device Impedance 100 ohms Jacket Material PE Jacket Type Direct Burial, Outdoor Material Bare Copper Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
TAA Compliant Yes
ADI Part Number Replaces RM-5AEFLDL1B Model Number Replaces 5AEFLDL1B
Cable Length 500' Color Black Insulation Material HDPE Package Type Reel Weight 14 lb
Limited Warranty 3-Year
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features Bendable, Gel-filled, Minimized Near-End Crosstalk (NEXT), Power-sum Near End Crosstalk (PSNEXT), Stranded Indoor/Outdoor Outdoor
