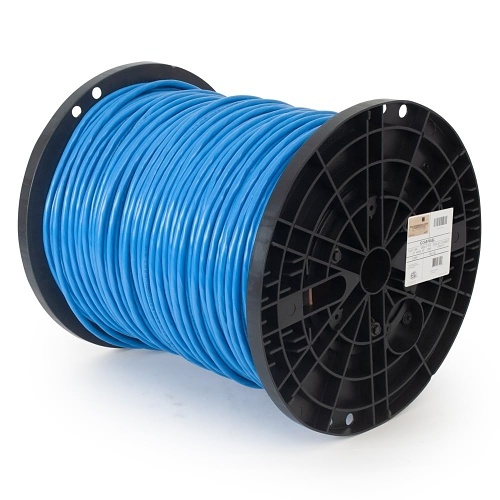

ICC ICCABP6FBL CAT6A CMP Plenum 23AWG 100% Solid Pure Copper Shielded Bulk Ethernet Cable, FTP, PoE++, 650 MHz, UL Certified, ETL Verified, 1000' Reel, Blue
ICCABP6FBL
|H2-CABP6FBL
Color: Blue
Shielding: Yes
Jacket Type: Plenum
Shop all ICC
ICC ICCABP6FBL CAT6A CMP Plenum 23AWG 100% Solid Pure Copper Shielded Bulk Ethernet Cable, FTP, PoE++, 650 MHz, UL Certified, ETL Verified, 1000' Reel, Blue
ICCABP6FBL | H2-CABP6FBL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
CAT6A CABLE: ICC's CAT6A 10Gig FTP shielded plenum cable delivers exceptional transmission performance, exceeding 650MHz. It not only meets but exceeds TIA Alien Crosstalk requirements and holds ETL Verification to the TIA 568.2-D standard for seamless support of 10Gig Ethernet applications (10GBASE-T). The cable is intelligently designed with a spline to separate neighboring twisted pairs, effectively minimizing Alien Crosstalk. With an outer diameter of 7.6mm and conductor insulation diameter of 1.18mm, this plenum-rated cable guarantees reliability and durability. It is an ideal choice for high-bandwidth applications such as data centers and other data-intensive or backbone requirements, especially in plenum spaces where fire safety is paramount. It comes conveniently packaged on a reel for ease of use.
Main Features
- CAT6A CMP Plenum 23AWG Solid Copper
- Supports up to 100W PoE++
- 650 MHz Frequency for high-speed data
- UL Certified and ETL Verified
- TAA Compliant and Section 889 Certified
- Conforms to TIA 568.2-D and IEEE 802.3
- Indoor use with CMP plenum-rated PVC
- 1000' Reel with sequential footage markings
General Information
Name: ICC ICCABP6FBL CAT6A CMP Plenum 23AWG 100% Solid Pure Copper Shielded Bulk Ethernet Cable, FTP, PoE++, 650 MHz, UL Certified, ETL Verified, 1000' Reel, Blue
Category: ICC, Wire & Cable, Network Cables, Category 6A Network Cables
UPC Code: 633758035279
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number H2-CABP6FBL Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABP6FBL Product Model ICCABP6FBL Product Name Cat.6a FTP Cable Product Type Network Cable
American Wire Gauge 23AWG Cable Rating Plenum Cable Type Category 6a Conductor Count 4 Device Supported Network Device Jacket Material PVC Jacket Type Plenum Material PVC Number of Conductors 8 Number of Pairs 4 Shielding Yes
Connector Type RJ45
Cable Length 1000' Color Blue Insulation Material Fluoropolymer Weight 50.20 lb
Limited Warranty 3-Year
Certifications & Standards ETL, RoHS, TIA, UL Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Flame Retardant
