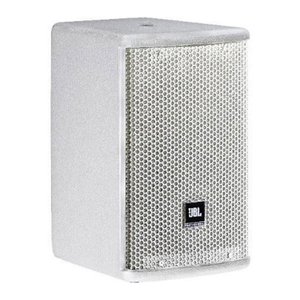

JBL Professional AC15 Ultra Compact 2-Way 5.25" Loudspeaker, Pair, White
AC15|JF-AC15WH
Color: White
JBL Professional AC15 Ultra Compact 2-Way 5.25" Loudspeaker, Pair, White
AC15|JF-AC15WH
Color: White
JBL Professional
JBL Professional AC15 Ultra Compact 2-Way 5.25" Loudspeaker, Pair, White
AC15 | JF-AC15WH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
High output, 2-way Loudspeaker systems combining flexibility with high fidelity
Main Features
- 1” Dome Tweeter with 90° x 90° Coverage.
- 5.25" LF transducer
- Ultra compact enclosure
- 300W Program Power
- Dual Neutrik NL4 connectors plus screw terminal
- FIR Tuning Set Delivers Optimized Frequency and Phase Response, Coverage Consistency, and Sound Quality
- Attachment points for optional U-bracket
General Information
Name: JBL Professional AC15 Ultra Compact 2-Way 5.25" Loudspeaker, Pair, White
Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 691991010576
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number JF-AC15WH Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number AC15-WH Packaged Quantity 2 Product Model AC15 Product Name AC15 Ultra Compact 2-way Loudspeaker with 1 x 5.25" LF Product Type Speaker Weight (Approximate) (g) 4762.72
-
Crossover Type 2-way Impedance 16 ohms Impedance (Ohm) 16 Maximum Frequency Response (Hz) 18000 Minimum Frequency Response (Hz) 90 PMPO Output Power (W) 600 Tweeter Driver Material Dome Tweeter Driver Size 1" Tweeter Driver Size (mm) 25.4 Woofer Driver Size 5.25" Woofer Driver Size (mm) 133.35
-
Maximum Frequency Response 18 kHz Minimum Frequency Response 90 Hz Number of Speakers 2 PMPO Output Power 600 W RMS Output Power 150 W RMS Output Power (W) 150
-
Color White Color Family White Depth 7" Depth (mm) 177.8 Height 9.5" Height (mm) 241.3 Product Color White Weight (Approximate) 10.50 lb Width 5.9" Width (mm) 149.86
-
Limited Warranty 5 Year
