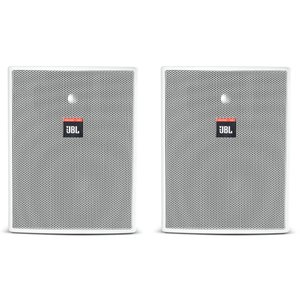

JBL Professional C25AV-LS 5.25" Control Compact Indoor Outdoor Background/Foreground Loudspeaker for Life Safety Application, White, Pair
JBL Professional C25AV-LS 5.25" Control Compact Indoor Outdoor Background/Foreground Loudspeaker for Life Safety Application, White, Pair
JBL Professional C25AV-LS 5.25" Control Compact Indoor Outdoor Background/Foreground Loudspeaker for Life Safety Application, White, Pair
25AV-LS | JF-C25AVLSWH
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Control 25AV-LS is built on the same platform as our popular Control 25AV and is UL 1480 UUMW listed for use in fire alarm and/or emergency communication systems. The Control 25AV-LS utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way Loudspeaker. Premium performance capability and even coverage ensures excellent sound quality throughout the listening area. A top-quality, low saturation transformer, enables the Loudspeaker to be used on either 70 volt or 100 volt distributed speaker lines, with similar fidelity performance to the 8 ohm bypass position. The patented InvisiBall mounting method is simple to install, aims easily, and provides a high degree of theft deterrence. The cabinet accepts a variety of paints to match any decor. Weather resistance is maximized by utilizing an aluminum grille featuring polyester powder coating and liquid-tight MTC-PC2 terminal covers. Coating the woofer cone in polypropylene and terminating its circumference in JBL's WeatherEdgeTM, a seamless, butyl rubber extension of the woofer surround, protects critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance. Nickel/zinc rust-resistant terminals ensure a secure input connection.
Main Features
- EN 54-24 Compliant for Life Safety Applications
- Video shielded for use near video monitors
- Extremely smooth frequency response
- Aluminum Grille with Polyester Powder Coating for enduring reliability
- 60W transformer for 70V or 100V lines, with 8 Ohms thru.
- SonicGuard overload protection
- 5.25" polypropylene coated woofer, 0.75" titanium coated horn-loaded tweeter
- Includes InvisiBall mounting hardware and sealed input panel cover
- Screw-down input terminals.
- 105° x 85° high frequency horn
General Information
Specifications
-
ADI Part Number JF-C25AVLSWH Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number C25AVLS-WH Product Line Control Product Model 25AV-LS Product Name Control 25AV-LS Speaker Product Type Speaker Weight (Approximate) (g) 3810.176
-
Maximum Frequency Response (Hz) 20000 Minimum Frequency Response (Hz) 90 Sensitivity 87 dB Sensitivity (dB) 87 Speaker Size 5.25" Tweeter Driver Material Titanium Tweeter Driver Size 0.75" Tweeter Driver Size (mm) 19.05 Woofer Driver Material Polypropylene Woofer Driver Size 5.25" Woofer Driver Size (mm) 133.35
-
Maximum Frequency Response 20 kHz Minimum Frequency Response 90 Hz RMS Output Power 200W RMS Output Power (W) 200 Shipping Weight (Approximate) (g) 8600
-
Color White Depth 6.3" Depth (mm) 160.02 Height 9.3" Height (mm) 236.22 Product Color White Product Material Acrylonitrile Butadiene Styrene (ABS), Aluminum Speaker Installation Indoor|Outdoor Weight (Approximate) 8.40 lb Width 7.4" Width (mm) 187.96
-
Limited Warranty 5 Year
-
Package Contents - Control 25AV-LS Speaker
- 1 x MTC-PC2 Input Panel Cover
- InvisiBall Mounting Hardware
