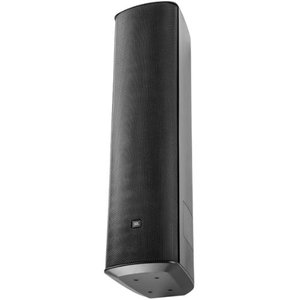

JBL Professional CBT 1000E High Output Column Extension Speaker, Black
CBT 1000E|JF-CBT1000E
Color: Black
JBL Professional CBT 1000E High Output Column Extension Speaker, Black
CBT 1000E|JF-CBT1000E
Color: Black
JBL Professional
JBL Professional CBT 1000E High Output Column Extension Speaker, Black
CBT 1000EÂ |Â JF-CBT1000E
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
When connected to a CBT1000 line array column speaker, the CBT1000E Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.
Main Features
- Components Six 6, 6.5" high-excursion LF drivers
- 1500W RMS power handling
- Built-in purpose-designed crossover network for combining with CBT 1000
- Coupler plate included
- Doubles power handling and extends pattern control
General Information
Name: JBL Professional CBT 1000E High Output Column Extension Speaker, Black
Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 691991005701
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number JF-CBT1000E Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number CBT 1000E Product Model CBT 1000E Product Name Line Array CBT 1000E Speaker Product Series CBT Product Type Speaker Weight (Approximate) (g) 20000 Â
-
Impedance 8 ohms Impedance (Ohm) 8 Maximum Frequency Response (Hz) 650 Minimum Frequency Response (Hz) 38 PMPO Output Power (W) 6000 Sensitivity 130 dB Sensitivity (dB) 130 Â
-
Maximum Frequency Response 650 Hz Minimum Frequency Response 38 Hz PMPO Output Power 6000 W RMS Output Power 1500W RMS Output Power (W) 1500 Subwoofer Type Passive Â
-
Application/Usage Amusement Park, Auditorium, Cinema, Education, House of Worship, Lecture Hall, Multipurpose, Outdoor, Racetrack, Sports Bar, Transit Center Color Black Depth 13.58" Depth (mm) 345 Durability Salt Resistant, UV Resistant Form Factor Wall Mount Height 80.3" Height (mm) 2040 Speaker Installation Outdoor Weight (Approximate) 44.09 lb Width 9.8" Width (mm) 250 Â
-
Limited Warranty 5 Year Â
-
Package Contents - Line Array CBT 1000E Speaker
- 2 x Piece Wwivel (Pan)/Tilt Wall Bracket
- Coupler Plate
