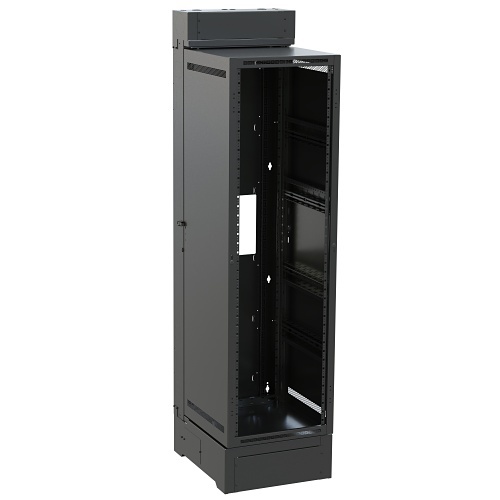

Middle Atlantic SR-40-32 SR Series 40U Large Pivoting Rack, 32" Depth, Wall Mounted
SR-40-32|NO-SR4032
Depth: 32"
Middle Atlantic SR-40-32 SR Series 40U Large Pivoting Rack, 32" Depth, Wall Mounted
SR-40-32|NO-SR4032
Depth: 32"
Key Features
- Constructed from 16-gauge steel with 1/8" thick laser-cut corner braces
- Middle Atlantic's trademarked"Tool-Free Quick-Mount" system allows for easy, one-person mounting of this rack.
- Built-in cable lacing points, touch-fastener tie points, and numerous knockouts allow you to organize any quantity of cables.
Key Features
- Constructed from 16-gauge steel with 1/8" thick laser-cut corner braces
- Middle Atlantic's trademarked"Tool-Free Quick-Mount" system allows for easy, one-person mounting of this rack.
- Built-in cable lacing points, touch-fastener tie points, and numerous knockouts allow you to organize any quantity of cables.
.jpg)
Key Features
- Constructed from 16-gauge steel with 1/8" thick laser-cut corner braces
- Middle Atlantic's trademarked"Tool-Free Quick-Mount" system allows for easy, one-person mounting of this rack.
- Built-in cable lacing points, touch-fastener tie points, and numerous knockouts allow you to organize any quantity of cables.
Middle Atlantic by Legrand
Middle Atlantic SR-40-32 SR Series 40U Large Pivoting Rack, 32" Depth, Wall Mounted
SR-40-32 | NO-SR4032
Please sign in to view pricing and availability and to add to cart.
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
The SR-40-32 is an innovative 40RU wall mounted rack that is designed to provide quick and convenient access to rear equipment connections. The SR Series wall mount rack can pivot open 90° on a floor base, eliminating the need for an aisle behind the rack. This enclosure is an excellent choice when space savings is required for heavier installations that will connect to on-wall cabling or pull boxes, and when easy access to rear equipment connections is essential. The SR-40-32 has an overall depth of 32 inches and is 23 inches wide. It features installation ease with the patented Tool Free Quick-Mount system for center section mounting to the backpan. The "bonus" 4 rackspaces in the base are perfect for mounting a UPS or other equipment, while the additional 3 rackspaces at the top are ideal for patching and other small equipment mounting. The center section rear channel of the SR-40-32 accommodates optional slim power to save space, including Select Vertical PDU with RackLink. It is also the industry’s first seismic rated wall rack series, delivering tip and/or vibration resistance when desired or required. If you need a versatile and innovative enclosure that provides easy access to rear equipment connections, the Middle Atlantic SR-40-32 is an excellent choice.
Main Features
- Constructed from 16-gauge steel with 1/8" thick laser-cut corner braces
- Middle Atlantic's trademarked"Tool-Free Quick-Mount" system allows for easy, one-person mounting of this rack.
- Built-in cable lacing points, touch-fastener tie points, and numerous knockouts allow you to organize any quantity of cables.
- A variety of accessories allow you to personalize your rack to meet your exact needs: doors, fans, latches, rear rack rails, and more.
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Rack rail is labeled in EIA standard rack space increments allowing for easy equipment alignment.
- Now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rackrail is optional.
- Now accept patented Lever Lock™ tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP)
- Installation ease with the patented Tool Free Quick-Mount™; system for center section mounting to the backpan
- “Bonus” 4 rackspaces in base for mounting a UPS or other equipment
General Information
Name: Middle Atlantic SR-40-32 SR Series 40U Large Pivoting Rack, 32" Depth, Wall Mounted
Category: Middle Atlantic by Legrand, Residential AV, Residential Furniture & Racks, Rack Cabinets & Frames
UPC Code: 656747069215
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number NO-SR4032 Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number SR4032 Product Model SR-40-32 Product Name SR Rack Cabinet Product Series SR Product Type Rack Cabinet
-
TAA Compliant Yes
-
Color Black Depth 32" Height 90.8" Material Steel Rack Depth 32" Rack Width 19"
-
Limited Warranty Lifetime
-
Country of Origin US
